About the Author
Dr. Liu Wei, R&D Director at Ruifengyuan Stone
PhD in Materials Science with specialization in stone fabrication technology. Developed hybrid production workflows combining traditional carving and CNC automation for 180+ architectural projects. Published research on tool wear patterns in stone machining in the Journal of Materials Processing Technology.
Key Takeaways
Yacht clubs require stone installations that withstand aggressive coastal environments while maintaining luxury aesthetics. Salt crystallization generates internal pressure exceeding 100 MPa within stone pores—sufficient to fracture many stone types. Fine-grained granite with water absorption below 0.20% offers the best long-term durability for marine applications. Impregnating silane/siloxane sealers with minimum 40% active content outperform surface coatings in coastal settings. Proactive maintenance reduces long-term restoration costs by an estimated 40-60% compared to reactive approaches.
Yacht clubs occupy a unique position in hospitality architecture—they must withstand the most aggressive coastal environments while delivering the refined aesthetics expected by luxury patrons. **The marine environment presents three distinct threats to stone installations: saltwater exposure causing chemical degradation, humidity cycling promoting moisture absorption, and mechanical stress from coastal wind and wave action.** According to the U.S. Naval Research Laboratory, coastal structures experience chloride exposure levels 10 to 50 times higher than inland buildings, requiring material selection strategies fundamentally different from conventional construction. This guide examines the specific challenges of yacht club stone application and provides technically grounded solutions for marine-grade stone specification.
Understanding Marine Environmental Degradation of Natural Stone

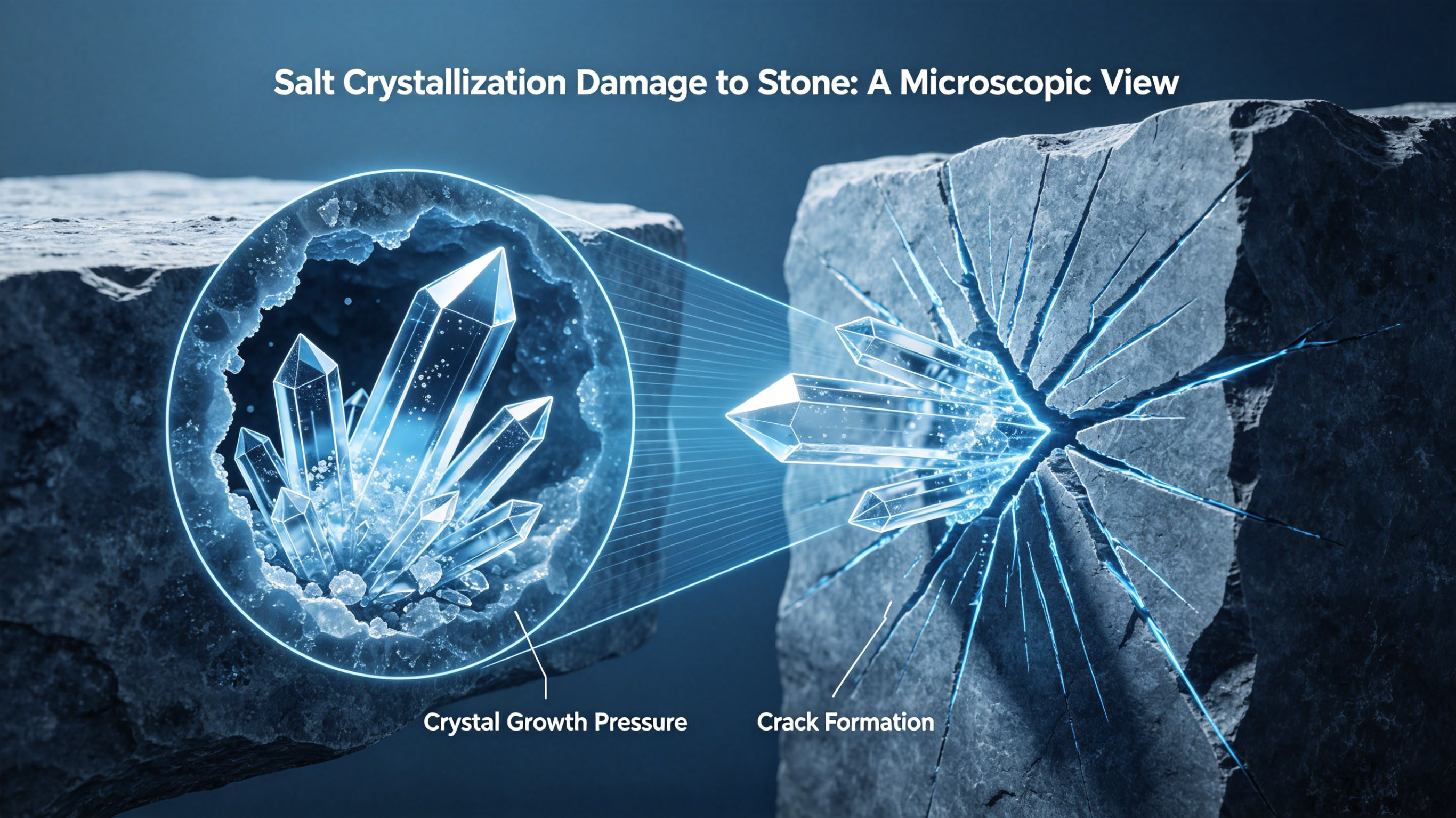

**The mechanism of marine stone degradation begins with salt crystallization.** Saltwater penetrates microscopic pores in the stone surface. When water evaporates, salt crystals form within the pore structure, creating internal pressure that exceeds 100 MPa—sufficient to fracture many stone types. The National Oceanic and Atmospheric Administration (NOAA) reports that coastal structures within 500 meters of the shoreline experience salt deposition rates of 1,000 to 5,000 mg/m² per day, accelerating deterioration compared to inland environments.
Temperature and humidity cycling compounds the problem. **Daily coastal temperature fluctuations drive repeated expansion and contraction cycles.** ASTM International’s marine corrosion testing standards document that materials in coastal environments experience 3 to 5 times more thermal cycling stress than those in stable interior conditions. This cycling progressively weakens stone structure at a microscopic level, leading to surface spalling and loss of detail in carved elements over 10 to 20 year periods.
Stone Selection Criteria for Marine Environment Applications
Granite: The Primary Choice for Yacht Club Stone Durability
For yacht club applications, **granite remains the most reliable stone category due to its dense crystalline structure and low porosity.** Granite varieties with water absorption below 0.20% and quartz content exceeding 20% demonstrate the best resistance to salt crystallization damage. Black galaxy, tan brown, and absolute black granites have documented performance records exceeding 30 years in coastal applications when properly sealed and maintained.
The selection of granite for marine environments should prioritize grain density over color preference. Fine-grained granites with uniform crystal structure present fewer pathways for moisture penetration than coarse-grained varieties. Testing per ASTM C97 for water absorption and ASTM C170 for compressive strength provides baseline data for marine suitability assessment. Granites with absorption rates above 0.40% should be reserved for interior, protected applications within yacht club facilities.
Marble and Limestone Limitations in Coastal Settings
**Marble and limestone present significant challenges for yacht club stone application due to their acid sensitivity and higher porosity.** Calcite-based stones react with acidic rainwater—common in coastal environments—causing surface etching that degrades appearance over time. The rate of dissolution in coastal settings can reach 0.1 to 0.3 mm per decade for unprotected marble, accelerating in areas with frequent cleaning or exposure to chlorine-treated pool water.
If marble is specified for interior yacht club spaces away from direct salt exposure, hard varieties such as Calacatta or Statuario with resin reinforcement provide improved performance. Honed finishes rather than polished surfaces show etching and wear less visibly. Regular maintenance including pH-neutral cleaning and annual sealing is non-negotiable for marble in coastal environments, regardless of interior positioning.
Engineered Stone and Porcelain Alternatives for Marina Applications
Engineered quartz surfaces and porcelain tiles offer alternatives for specific yacht club applications where natural stone faces insurmountable challenges. **Porcelain tiles rated PEI 5 with water absorption below 0.10% can match the visual appearance of natural stone while providing superior chemical resistance to pool chemicals, cleaning agents, and salt exposure.** These materials are particularly suitable for pool surround areas and wet bar surfaces where slip resistance and chemical durability are priorities.
The decision between natural stone and engineered alternatives should consider the specific application context. For bar tops and food service areas, engineered quartz provides the stain resistance marble lacks. For feature walls and reception areas away from direct salt exposure, natural stone delivers the authenticity that defines luxury yacht club aesthetics. A hybrid approach combining both material categories often produces the best overall results.
Protection Treatment and Sealant Systems for Marine Stone
Impregnating Sealers vs. Surface Coatings for Coastal Stone
**Sealer selection critically affects stone longevity in marine environments.** Impregnating sealers penetrate the stone structure and line pore walls with hydrophobic compounds, allowing moisture vapor to escape while preventing liquid water intrusion. These sealers are preferred for marine applications because they do not trap moisture within the stone—a common failure mode for film-forming surface coatings that delaminate under coastal UV exposure.
Surface coatings, including epoxy and polyurethane systems, provide a harder barrier but fail catastrophically when moisture gets trapped beneath them. In yacht club environments where humidity cycling is constant, coating failures typically occur within 2 to 5 years. **The U.S. Navy’s corrosion control guidelines recommend impregnating silane/siloxane sealers with 40% active content minimum for coastal stone protection,** re-applied at 12 to 24 month intervals depending on exposure severity.
Installation Best Practices for Marina and Coastal Stone
Installation methodology must account for the expanded movement requirements of coastal stone. Expansion joints should be placed at 6 to 8 foot intervals—closer than the 10 to 12 foot spacing standard for interior installations. All joint materials must be marine-grade silicone or polyurethane sealants resistant to salt and UV degradation. Standard caulking deteriorates within 12 months in coastal exposure and should never be specified.
Substrate preparation in marine environments requires enhanced moisture protection. A vapor barrier membrane rated for coastal applications should be installed beneath all stone surfaces at grade level. For elevated decks and terraces, drainage systems with corrosion-resistant components prevent water accumulation beneath stone installations. The Tile Council of North America’s Handbook provides specific guidelines for marine environment stone installation, including required mortar types and curing times.
Regular Maintenance Schedules for Yacht Club Stone Surfaces
**The maintenance frequency for yacht club stone installations exceeds that of inland facilities by a factor of 2 to 3.** Daily freshwater rinsing of salt-exposed surfaces prevents crystallization damage. Weekly cleaning with pH-neutral marine-grade stone cleaners removes biological growth and organic deposits. Quarterly inspection of sealant integrity identifies developing issues before they require extensive remediation. Annual professional assessment including moisture meter readings tracks stone condition objectively.
Restoration frequency depends on traffic and exposure levels. High-traffic entry areas may require re-honing every 3 to 5 years. Protected interior walls can maintain appearance for 10+ years. The key difference from inland maintenance is the emphasis on prevention—**salt damage accumulates invisibly for years before becoming apparent, by which point significant stone loss has already occurred.** Proactive care reduces long-term restoration costs by an estimated 40 to 60%.
Explore Related Yacht Club Stone Products
For yacht club interior finishes, polished marble slab options provide elegant wall cladding and countertop surfaces. Stone bathtub and spa elements offer luxury spa amenities in protected interior settings. Waterjet marble medallions create distinctive floor centerpieces for yacht club lobbies. Marble mosaic wall art provides decorative focal points for reception and dining areas.
Frequently Asked Questions About Yacht Club Stone Application
Q1: Can marble be used successfully in yacht club environments near the ocean?
Marble can be used in interior yacht club spaces protected from direct saltwater exposure, such as reception areas, dining rooms, and corridors. Honed finishes are recommended over polished. Annual sealing with impregnating silane sealer is mandatory. Marble should not be specified for exterior areas, pool surrounds, or spaces with direct salt spray access. Granite is the safer choice for any application within 50 meters of the water.
Q2: What is the best stone type for outdoor yacht club pool decks and terraces?
Fine-grained granite with water absorption below 0.20% is the best choice for pool decks and terraces. Flamed or bush-hammered finishes provide slip resistance meeting ADA requirements when wet. Absolute black, blue pearl, or silver pearl granites offer aesthetic variety. Expansion joints at 6-foot intervals accommodate thermal movement. Impregnating sealer should be reapplied every 12 months for optimal protection.
Q3: How does salt spray specifically damage natural stone installations?
Salt spray damages stone through crystallization pressure. Saltwater enters microscopic pores; when water evaporates, salt crystals grow within the pores, generating internal stress exceeding 100 MPa. This pressure fractures the stone from within, causing surface spalling, flaking, and loss of carved details. The damage rate increases with temperature, humidity cycling, and direct wave splash. Preventive rinsing and proper sealing are essential countermeasures.
Q4: What sealer type provides the best protection for coastal stone installations?
Impregnating silane/siloxane sealers with minimum 40% active content provide the best protection. These sealers penetrate the stone and create hydrophobic pore linings without sealing the surface. Unlike film-forming coatings, they allow moisture vapor to escape, preventing trapped moisture damage. Application every 12 to 24 months maintains effectiveness. Surface coatings like epoxy should be avoided as they trap moisture and delaminate under coastal UV exposure.
Q5: How often should yacht club stone floors be professionally maintained?
Professional maintenance should follow a tiered schedule: daily freshwater rinsing of salt-exposed surfaces, weekly pH-neutral cleaning, quarterly sealer integrity inspection, annual professional assessment including moisture readings. Restoration frequency depends on traffic: 3 to 5 years for high-traffic entries, 5 to 7 years for dining areas, 10+ years for protected walls. Preventive maintenance reduces long-term costs by 40 to 60% compared to reactive restoration.
Q6: Are engineered stone alternatives better than natural stone for all marine applications?
Engineered quartz and porcelain outperform natural stone in specific applications: pool surrounds, wet bars, food service areas, and any surface exposed to pool chemicals. For feature walls, reception desks, and interior decorative elements, natural stone delivers superior aesthetics and thermal properties. A hybrid approach selecting materials by specific exposure conditions produces the best overall results. Decisions should consider both performance requirements and design objectives.
Conclusion
Specifying natural stone for yacht club marine environments demands a fundamentally different approach than conventional stone installation. From granite selection prioritizing grain density and low porosity to impregnating sealer systems that withstand salt and UV exposure, every decision must account for the aggressive coastal conditions. By following the material selection criteria, installation best practices, and proactive maintenance schedules outlined in this guide, architects and specifiers can deliver yacht club stone installations that perform reliably for decades while maintaining the luxury aesthetics their clients expect.
References and Further Reading
U.S. Naval Research Laboratory – Coastal Corrosion Studies
NOAA – Coastal Environment Monitoring Data
ASTM International – Marine Corrosion Testing Standards
Post time: Jun-04-2026
