Waterjet metal inlay represents a sophisticated intersection of stone fabrication technology and artistic design. This technique uses high-pressure abrasive waterjet cutting to create precise cavities in stone flooring, into which metal strips, shapes, or patterns are fitted to form decorative compositions. The result transforms ordinary stone floors into customized artworks that define the character of entryways, lobbies, and feature spaces. Unlike surface-applied metal elements, waterjet inlays become integral parts of the stone surface, lasting the lifetime of the flooring installation.
The Waterjet Cutting Process for Stone and Metal
Abrasive waterjet cutting operates by pressurizing water to 60,000 PSI (414 MPa) and mixing it with garnet abrasive particles. The resulting jet stream cuts through stone and metal without generating heat, eliminating thermal distortion and material property changes that occur with laser or plasma cutting. For metal inlay work, the waterjet cuts both the stone base and the metal inlay pieces from the same digital design file, ensuring perfect fit between materials.
Cutting accuracy of ±0.3mm allows intricate pattern pieces to fit together precisely without visible gaps. The waterjet can cut stone thicknesses up to 150mm and metal thicknesses up to 50mm in a single pass, accommodating the full range of materials used in decorative inlay work. The ASTM International standard E1258 provides test methods for evaluating waterjet cutting performance in stone and metal materials.
Metal Selection for Floor Inlay Applications
Brass is the most widely used metal for stone floor inlay due to its warm golden color, workability, and corrosion resistance. Architectural brass alloys with 60–70% copper content offer the best balance of hardness for cutting and flexibility for installation. Brass inlay develops a natural patina over time that many designers prefer to its original bright finish.
Stainless steel provides maximum durability for high-traffic commercial inlay applications. Type 304 stainless steel, with a hardness of 200 HB, resists scratching and maintains its silver appearance indefinitely with minimal maintenance. The higher cutting resistance of stainless steel requires slower waterjet feed rates—typically 30–40% slower than cutting brass of equivalent thickness.
Copper offers distinctive reddish tones that contrast strongly with light marble and limestone flooring. Copper inlay develops a verdigris patina when exposed to moisture and cleaning chemicals, which some designers specify for antique or rustic aesthetic effects. For applications requiring color stability, pre-oxidized copper or sealed copper inlays prevent unwanted patina development.
Design Applications and Pattern Types

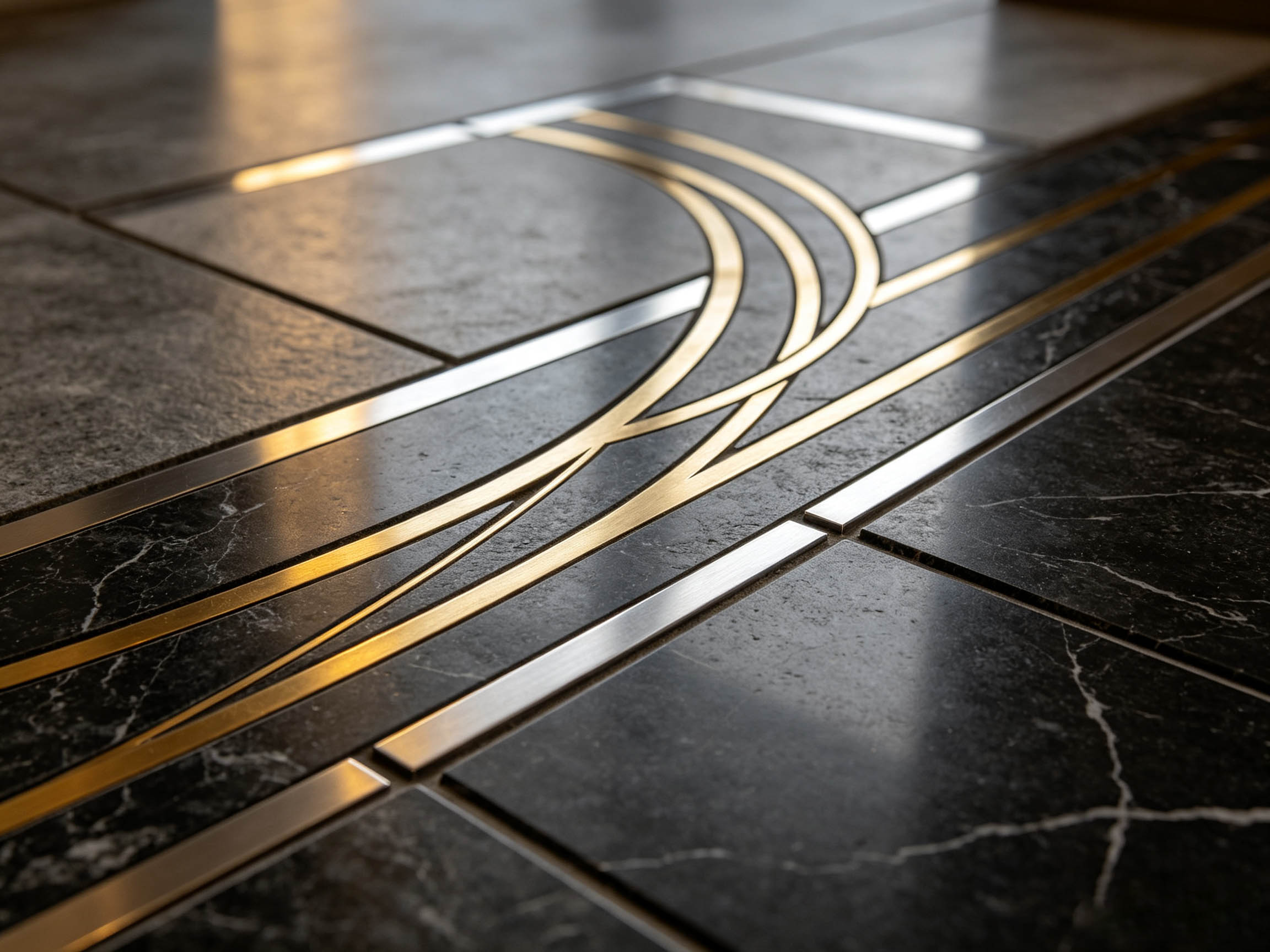

Waterjet metal inlay accommodates an extensive range of design styles. Geometric borders using straight and angled metal strips frame room perimeters and define traffic zones. Flowing curvilinear patterns incorporating metal accents within stone medallions create entryway focal points. Natural stone waterjet marble medallions with metal inlay range from simple circular designs to complex multi-material compositions combining several stone colors and metal types within a single piece.
Custom logos and monograms are frequently executed in waterjet metal inlay for corporate lobbies and branded hospitality spaces. The waterjet's precision allows text and graphic elements as small as 15mm to be cut clearly in both stone and metal. Registration accuracy between stone and metal components ensures that fine details remain crisp and legible at standard viewing distances.
European classic style waterjet marble inlay designs incorporate metal accents within traditional medallion compositions inspired by Renaissance and Baroque architectural ornamentation. These historical patterns use metal to highlight specific design elements—emphasizing scrollwork, defining geometric boundaries, and adding visual weight to central motifs.
Installation Requirements for Metal Inlay Flooring
Proper substrate preparation is essential for long-term durability of waterjet metal inlay. The stone base must be installed on a stable concrete slab or properly reinforced subfloor that meets minimum deflection standards of L/720 for natural stone. Metal inlay strips should be set in epoxy adhesive formulated for dissimilar material bonding, as standard thin-set mortars do not bond reliably to metal surfaces.
Thermal expansion differences between stone and metal require careful installation planning. Brass and copper expand approximately twice as much as marble per degree of temperature change. In interior climate-controlled environments, this differential is manageable for most inlay designs. In areas subject to temperature variation, expansion joints placed at 6-meter intervals accommodate differential movement without stressing the inlay.

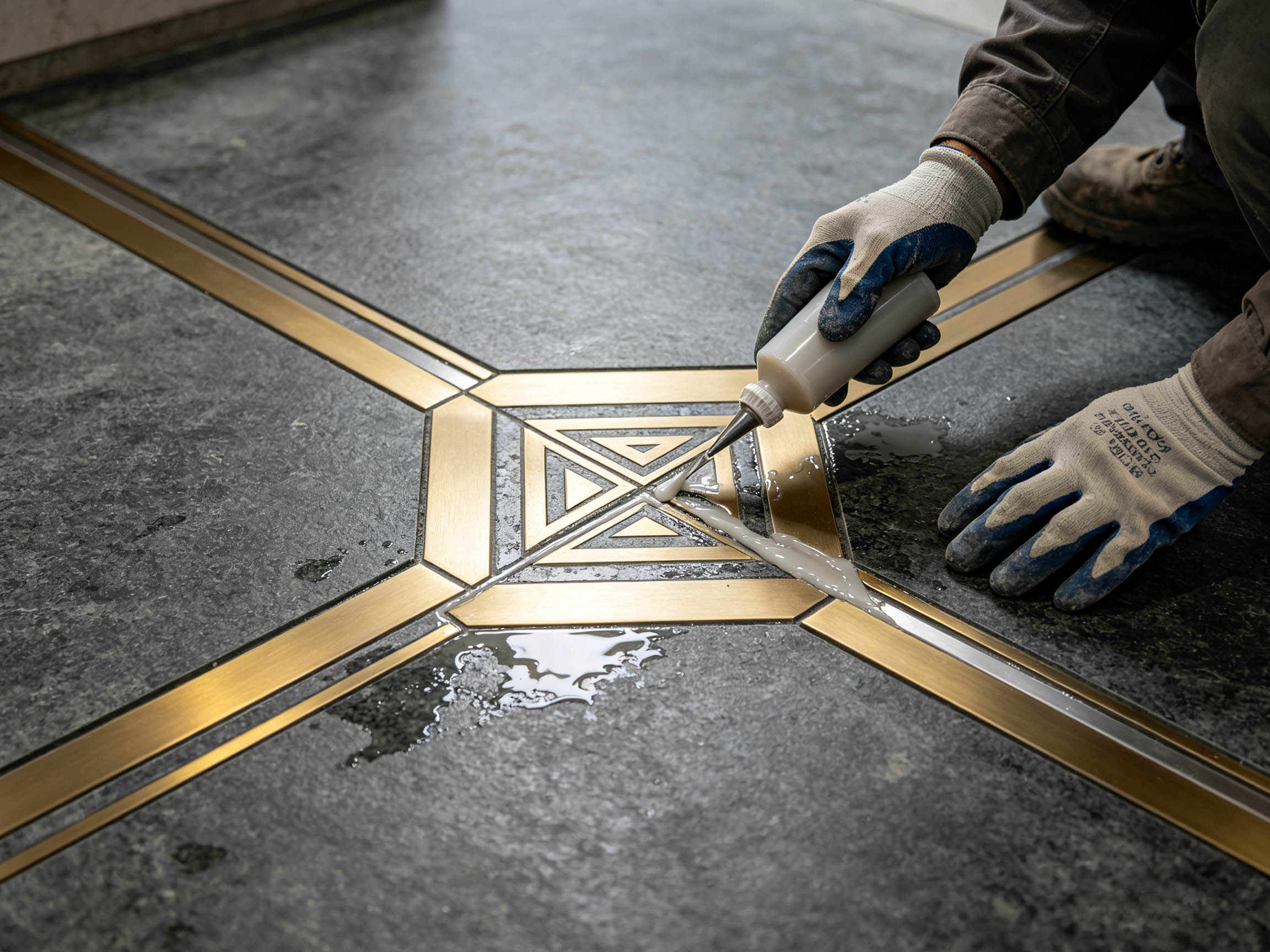

Grouting procedures for metal inlay differ from standard stone installations. The grout color should match either the stone or the metal to minimize visual distraction. Epoxy grout is recommended for metal inlay because it provides higher stain resistance and better adhesion to both stone and metal surfaces than cementitious grout. Grout joints of 1–2mm width balance visual refinement with structural requirement.
Maintenance of Metal Inlay Surfaces
Metal inlay within stone flooring requires maintenance approaches that address both materials. Standard stone cleaning procedures—using pH-neutral cleaners and soft mops—are suitable for the overall surface. Brass and copper inlays may require periodic polishing with metal-specific products to maintain their original brightness. Alternatively, a clear lacquer coating applied during fabrication protects brass and copper from tarnishing for 5–8 years before reapplication is needed.
The Natural Stone Institute provides maintenance guidelines for stone surfaces incorporating metal elements, emphasizing the importance of avoiding acidic or alkaline cleaners that attack metal surfaces differently than stone. A neutral pH cleaner in the 6.5–8.5 range protects both materials during routine maintenance.
Marble mosaic art and waterjet pattern collections demonstrate the range of stone-metal combinations achievable through advanced waterjet fabrication. The integration of metal inlay expands the design vocabulary of stone flooring beyond what is possible with stone alone.
Cost Considerations for Metal Inlay Projects
Waterjet metal inlay adds 30–60% to the cost of standard stone flooring installation, depending on design complexity and metal selection. Simple border patterns using brass inlay cost $40–80 per linear meter fabricated and installed. Custom medallions with multiple stone colors and metal inlay range from $500 to $3,000 per square meter depending on size and complexity.
Brass inlay is the most economical metal option, costing 15–25% less than stainless steel and 30–40% less than copper at current metal market prices. Metal thickness of 3–5mm provides adequate visual presence while minimizing material cost and cutting time. The investment in metal inlay flooring is recovered through the distinctive appearance that sets the installation apart from standard stone flooring.
Frequently Asked Questions
Can waterjet metal inlay be installed in existing stone floors?
Metal inlay can be added to existing stone floors by cutting channels with a handheld waterjet or grinding tool and setting metal strips into epoxy adhesive. The existing stone must be in good condition with secure adhesion to the substrate. Color matching between existing and new stone elements may be necessary.
Does metal inlay make stone floors more difficult to clean?
Metal inlay does not significantly affect cleaning procedures for stone floors. Standard dust mopping and damp mopping with pH-neutral cleaner suffice. Brass and copper inlays may develop tarnish over time requiring periodic polishing. Lacquer-coated metal inlays require no special cleaning beyond standard stone maintenance.
What is the minimum width for metal inlay strips in stone?
The minimum practical width for waterjet-cut metal inlay strips is 3mm. Strips narrower than 3mm become brittle during handling and difficult to align during installation. For most architectural applications, 5–8mm wide metal strips provide the best balance of visual presence and installation reliability.
Will waterjet metal inlay scratch or wear differently than the surrounding stone?
Brass and copper inlays wear slightly faster than marble and will develop surface scratches more readily than the surrounding stone. Stainless steel inlay is harder than most stones and maintains its surface finish longer. All metals used in floor inlay can be repolished during stone restoration cycles to refresh the surface appearance.
How long does a typical waterjet metal inlay installation last?
Properly installed waterjet metal inlay lasts the lifetime of the stone flooring—typically 30–50 years for residential installations and 15–25 years for commercial applications before replacement or major restoration is required. The inlay itself does not degrade; the installation's longevity depends on the stone and substrate performance.
Can waterjet metal inlay be combined with heated flooring systems?
Metal inlay is compatible with radiant floor heating systems, provided the heating elements are installed beneath the stone substrate rather than within the setting bed. Thermal expansion differences between stone and metal are accommodated by proper joint placement. The stone installer must coordinate heating system design with expansion joint locations.
