TL;DR — Key Takeaways
- Marble balustrade systems must withstand 0.75 kN/m horizontal load per IBC 1607.8.
- Baluster spacing cannot exceed 100mm clear opening to prevent child entrapment.
- Standard baluster dimensions: 80-120mm diameter, 850-1,100mm height above finished floor.
- Post spacing typically 1,200-1,800mm centers depending on rail configuration.
- Installation requires chemical anchoring or concealed mechanical connections rated for tension and shear.

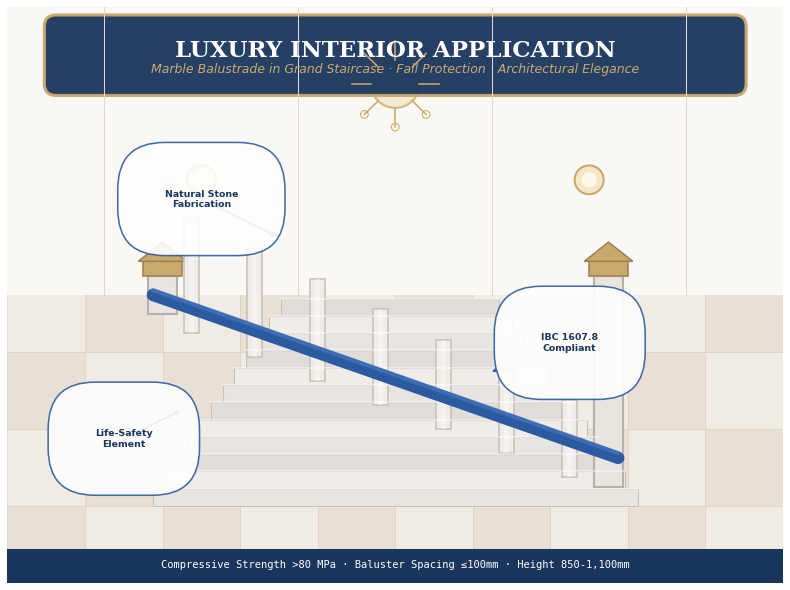

A marble balustrade is a protective barrier system comprising vertical posts (balusters), horizontal rails, and structural newels, fabricated from natural stone. These assemblies provide fall protection at stairs, balconies, and elevated walkways while contributing to architectural aesthetics. Specification involves structural engineering calculations, building code compliance, and coordination with substrate conditions.
Because balustrade systems function as life-safety elements, failure modes include catastrophic collapse under lateral loading. The International Building Code (IBC) mandates specific performance criteria for handrail and guard systems. Stone balustrades offer compressive strength exceeding 80 MPa but require careful engineering to address stone's limited tensile capacity and brittleness under impact.
What Load Requirements Govern Balustrade Design?
Structural design of stone balustrade systems follows provisions in IBC Section 1607.8 and ASCE 7 Chapter 4.
Horizontal Loading Standards
Guard systems must resist the following loads per IBC 1607.8:
- Uniform load: 0.75 kN/m (50 plf) applied horizontally at top rail
- Concentrated load: 0.89 kN (200 lbf) applied at any point
- Impact load: 1.33 kN (300 lbf) at stair nosing for handrails
These loads represent minimum design criteria—seismic zones and high-occupancy buildings may require increased capacity. The load duration factor for balustrade design is 1.0 (normal duration) per ASCE 7.
Deflection Limitations
IBC 1604.3 limits deflection under live load to L/240 for members supporting rigid elements like stone. For a 1,500mm span between posts, maximum allowable deflection equals 6.25mm. Stone balusters exhibit minimal deflection due to high stiffness (E = 50-70 GPa), but rail sections and post connections require verification.
Baluster Spacing Requirements
Per IBC 1015.4, openings between balusters must prevent passage of a 100mm (4-inch) sphere. This child-safety provision limits clear spacing to maximum 100mm. Typical stone baluster diameters of 80-120mm result in center-to-center spacing of 180-220mm.
How Do Material Properties Affect Baluster Selection?

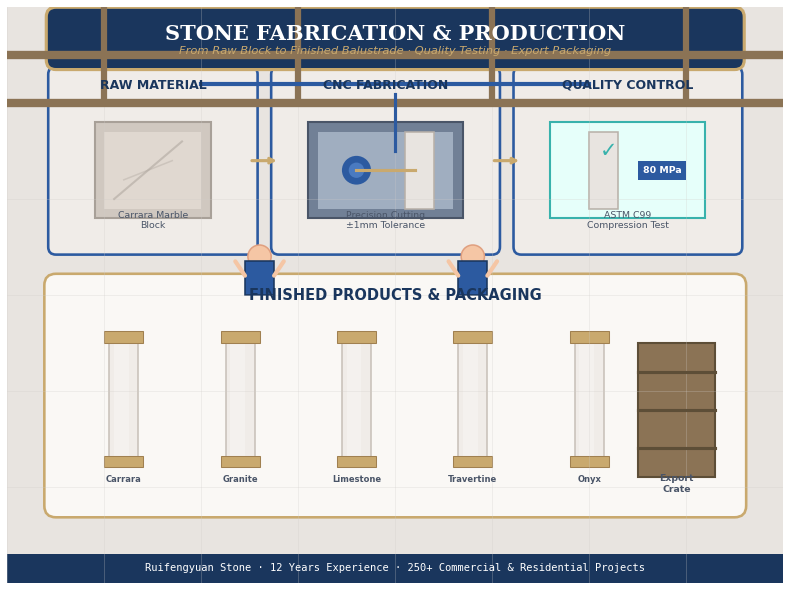

Natural stone materials for balustrade fabrication exhibit varying mechanical properties relevant to structural performance.
| Material | Compressive Strength (MPa) | Flexural Strength (MPa) | Density (kg/m³) | Exterior Durability |
|---|---|---|---|---|
| Carrara Marble | 80-100 | 12-15 | 2,700 | Moderate |
| Granite (G654) | 180-220 | 18-25 | 2,700 | Excellent |
| Limestone | 50-80 | 8-12 | 2,600 | Moderate |
| Travertine | 60-80 | 10-14 | 2,400 | Limited |
| Onyx | 60-80 | 10-14 | 2,600 | Poor |
Data source: ASTM C99 (Modulus of Rupture) and Natural Stone Institute technical bulletins.
Granite offers superior flexural strength, making it the preferred material for structural balusters subject to lateral loading. Marble provides adequate strength for residential applications but requires larger diameters or closer spacing for equivalent capacity. Onyx, despite aesthetic appeal, lacks structural robustness for balustrade applications.
What Installation Methods Ensure Structural Integrity?
Connection detailing determines balustrade system performance under load. Installation methods vary by substrate material and load path requirements.
Concrete and Masonry Substrates
Stone balusters connect to concrete substrates using:
- Stainless steel threaded rods (M12-M16 diameter, 316 grade)
- Chemical anchoring adhesive (epoxy or vinylester-based)
- Embedment depth: 100-150mm minimum
- Edge distance: 100mm minimum from concrete edge
Chemical anchors achieve pull-out strengths of 15-25 kN in C30 concrete when properly installed. Testing per ASTM E488 verifies anchor capacity. Post-installed anchors require torque-controlled installation to prevent adhesive voids.
Wood Frame Construction
Wood substrates present challenges due to material variability and limited bearing capacity:
- Blocking required between joists at baluster locations
- Through-bolting with washers (minimum 50mm diameter)
- Steel mounting plates for concentrated loads
- Structural screws (lag screws minimum 10mm diameter, 75mm embedment)
Connection design must account for wood shrinkage and seasonal movement. Clearance holes oversized by 2mm accommodate dimensional changes without inducing stress.
Steel Structure Integration
Steel substrates allow welded or bolted connections:
- Base plates welded to steel framing
- Mechanical fasteners (A325 bolts minimum)
- Isolation pads prevent galvanic corrosion between stone and steel
How Does Baluster Geometry Influence Performance?
Baluster cross-section and height affect structural capacity and code compliance.
Diameter and Section Properties
Standard baluster diameters range from 80mm (residential) to 150mm (commercial). Section modulus (S) for circular sections equals πd³/32. A 100mm diameter baluster provides section modulus of 98,175 mm³, resisting bending moment of 1.47 kN·m at 15 MPa allowable stress.
Tapered balusters (wider at base) increase section modulus at critical stress location. Typical taper ratio of 1:12 provides 20-30% strength increase at base without aesthetic compromise.
Height Limitations
IBC 1015.2 mandates minimum guard heights:
- Residential (R-3 occupancy): 900mm above adjacent surface
- Commercial (other occupancies): 1,070mm above adjacent surface
- Stair handrails: 860-960mm above tread nosing
Increased baluster height creates higher bending moment at base connection. A 1,100mm baluster experiences 33% higher moment than 900mm baluster under identical horizontal load. Engineering verification required for heights exceeding 1,200mm.
What Maintenance Protocols Preserve Balustrade Integrity?
Maintenance requirements for stone balustrade systems vary by exposure and material.
Exterior installations require:
- Annual inspection of anchor points for corrosion or loosening
- Re-sealing at base connections every 5-7 years
- Cleaning with pH-neutral solutions (avoid acidic cleaners on marble/limestone)
- Replacement of deteriorated joint sealant
Granite balusters exhibit minimal weathering; marble and limestone require more frequent inspection for surface erosion. Freeze-thaw exposure accelerates deterioration in porous stones—water absorption above 0.5% indicates replacement necessity.
Frequently Asked Questions (FAQ)
Can existing wood balustrades be replaced with stone?
Replacement requires structural evaluation. Stone balusters impose higher concentrated loads (25-40 kg each) versus wood (5-10 kg). Floor framing may require reinforcement. Connection points need modification for anchor bolts versus wood screws.
What is the maximum span between newel posts?
Standard spacing ranges 1,200-1,800mm depending on rail material and loading. Steel or stone rails allow wider spacing; wood rails require closer support. Engineering calculation verifies deflection under 0.75 kN/m uniform load.
Are stone balustrades suitable for curved stairs?
Curved installations require custom fabrication. Balusters must be cut with compound angles at top and bottom. Radius limitations: minimum 600mm for 100mm diameter balusters. Costs increase 40-60% versus straight runs.
How are balusters removed for replacement?
Grout or sealant at base must be cut with oscillating tool. Chemical anchors require heating to 250°C to break epoxy bond without damaging stone. Mechanical anchors unthread after removing decorative cap. Professional installation recommended for replacement.
What warranty applies to stone balustrade systems?
Material defects: 10 years. Structural integrity: 5 years when installed by certified contractors. Exclusions: impact damage, improper cleaning chemical damage, and substrate failure. Annual inspection required to maintain warranty validity.
