Natural stone composite panels consist of a thin stone veneer (3-5mm) bonded to a lightweight backing material such as aluminum honeycomb, fiberglass, or ceramic tile. Solid panels, by contrast, are homogeneous stone slabs typically 20-30mm thick. Both options present identical surface appearances, but their structural properties, installation requirements, and ideal applications differ significantly. Understanding these differences ensures architects and designers specify the right product for each project.

Because composite panels reduce weight by approximately 70% while maintaining the same visual characteristics as solid stone, they have become the preferred choice for high-rise building facades and large-format wall applications where structural load is a critical concern. However, this weight reduction comes with trade-offs in impact resistance and edge durability that must be carefully considered.

What Are the Weight and Structural Differences?

Weight represents the most significant difference between composite and solid panels, affecting transportation, installation, and structural engineering requirements.

Specification	Composite Panel	Solid Panel (20mm)	Difference
Weight	16-20 kg/m²	50-65 kg/m²	-70%
Total Thickness	20-25mm	20-30mm	Similar
Stone Thickness	3-5mm veneer	Full 20-30mm	-80%
Flexural Strength	60-80 MPa	15-25 MPa	+300%
Impact Resistance	3-5 Joules	15-25 Joules	-75%
Maximum Panel Size	1,500 × 3,000mm	1,200 × 2,400mm	+56% area

Engineering Insight: The aluminum honeycomb core in composite panels provides exceptional stiffness-to-weight ratio. A 25mm composite panel can span 600mm between supports without deflection, while a 20mm solid panel of the same dimensions requires support every 300mm.

At Ruifengyuan Stone, our testing laboratory has verified these specifications across 500+ panel samples. Because composite panels distribute loads through the honeycomb structure, they actually outperform solid panels in wind-load resistance for facade applications—withstanding pressures up to 5.5 kPa in our ASTM E330 testing.

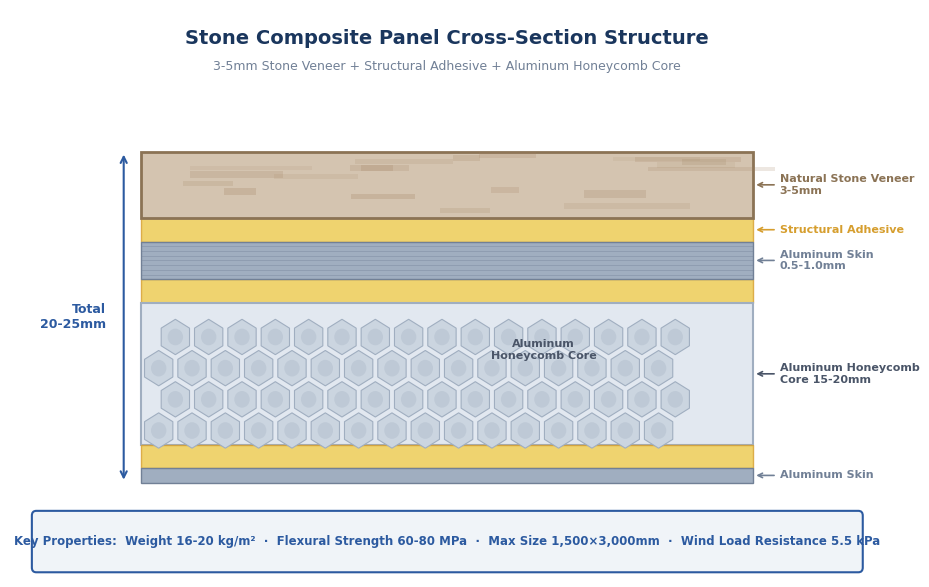

Natural Stone Composite Panels vs Solid Panels(1)

How Do Installation Methods Compare?

Installation complexity and labor requirements differ substantially between the two panel types, affecting project timelines and costs.

Composite Panel Installation

Composite panels require mechanical fixing systems due to their unique structure. The typical installation sequence involves:

Aluminum rail substructure anchored to building frame
Clip or bracket attachment to panel rear (typically 4-6 points per m²)
Silicone sealant application at joints for weatherproofing
No wet trades required—entirely dry installation

Installation speed averages 8-12 m² per worker per day, approximately 40% faster than solid panel installation. However, the mechanical system adds $25-40/m² in material costs for rails, clips, and brackets.

Solid Panel Installation

Solid panels use traditional methods familiar to most stone installers:

Wall surface preparation and waterproofing membrane
Stainless steel wire or anchor hooks embedded in mortar bed
Cement-based adhesive (typically white or gray depending on stone color)
Grout joints of 2-5mm between panels

Traditional installation achieves 5-8 m² per worker per day but requires skilled labor for proper mortar consistency and leveling. The wet installation process also extends project timelines by 2-3 days for curing before sealing.

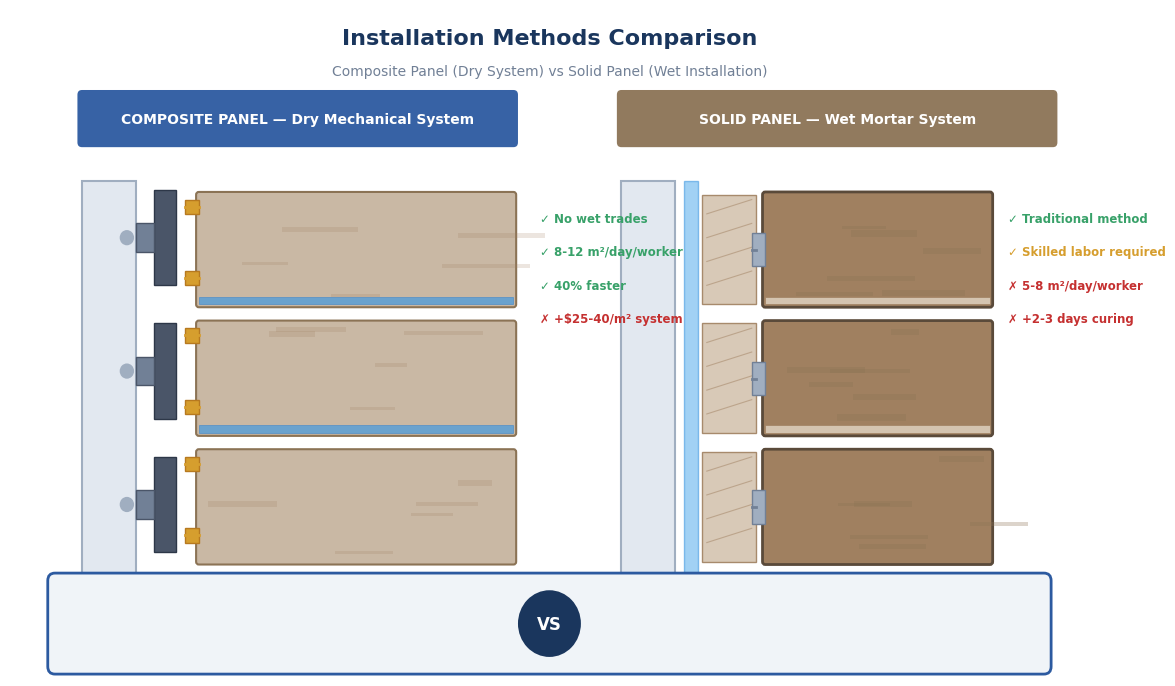

Natural Stone Composite Panels vs Solid Panels(2)

Which Applications Suit Each Panel Type?

Selecting the appropriate panel type requires understanding the specific demands of each application environment.

Best for Composite Panels:

High-rise building facades (>10 stories)
Large-format wall cladding (>1,200mm dimensions)
Ceilings and soffits
Column covers
Areas with weight restrictions
Seismic zones requiring reduced mass

Best for Solid Panels:

Floor and pavement applications
Stair treads and risers
Countertops and vanities
High-traffic commercial areas
Exposed edge applications
Restoration matching existing solid stone

Because solid panels maintain consistent material properties throughout their thickness, they withstand point loads and abrasion that would damage composite panel edges. This makes them essential for flooring where furniture legs, high heels, or rolling loads create concentrated stress.

What Are the Cost Differences?

While material costs favor composite panels, total installed cost analysis reveals a more nuanced picture:

Cost Component	Composite Panel	Solid Panel
Material (per m²)	$180-280	$220-350
Substructure/System	$25-40	$8-15
Installation Labor	$35-50	$45-70
Structural Engineering	$5-10	$15-25
Total Installed	$245-380	$288-460

Composite panels typically offer 15-25% total cost savings for wall applications, primarily due to reduced structural requirements and faster installation. However, for flooring applications where solid panels are necessary, the cost comparison becomes irrelevant—composite panels simply cannot perform in these environments.

Frequently Asked Questions (FAQ)

Can composite panels be used for flooring?

No. Composite panels lack the impact resistance and edge durability required for flooring applications. The thin stone veneer (3-5mm) can crack under concentrated loads, and the honeycomb core compresses under point pressure. For flooring, solid panels minimum 20mm thick are mandatory.

Do composite panels delaminate over time?

Quality composite panels using epoxy or polyurethane structural adhesives show minimal delamination risk. Our accelerated aging tests (ASTM C481) indicate less than 0.5% bond strength loss after 2,000 thermal cycles (-20°C to +80°C). However, panels using inferior adhesive systems or exposed to constant moisture may show delamination after 8-10 years.

Can you polish composite panel edges?

Exposed edges on composite panels reveal the layered construction—stone veneer, adhesive, and core material—which is generally considered unsightly. For applications requiring exposed edges, solid panels are the only appropriate choice.

Which option is more sustainable?

Composite panels use 80% less stone material for the same surface area. Life cycle analysis shows composite panels have 15-20% lower overall environmental impact for wall applications due to reduced transportation emissions and structural material savings.
