- A floor medallion is a circular, oval, or geometric inlay of cut natural stone set flush into the floor, and it anchors a luxury living room the way a chandelier anchors a ceiling.
- Dubai Eye medallions build their impact from radial symmetry — concentric rings, petal-like rays, and strong light-dark contrast between marble varieties.
- Chinese pattern medallions translate auspicious motifs such as huíwén meander borders, cloud scrolls, and ruyi symbols into repeating waterjet-cut geometry.
- Abrasive waterjet cutting at roughly 60,000 psi produces joint lines of about 0.5 mm, which is what makes complex marble inlay practical at any scale.
- As a working rule, medallion diameter sits between one-third and one-half of the room's shorter dimension, with 18 to 20 mm as the standard residential thickness.
What a Floor Medallion Does for a Luxury Living Room
A floor medallion is a circular, oval, or geometric inlay of cut natural stone set flush into the floor — and in luxury living room design, it is one of the few elements that can anchor an entire open space by itself. Because the pattern is cut from solid marble rather than printed, painted, or imitated in tile, it ages like the building: joints stay tight, edges stay crisp, and the surface can be honed and repolished for decades. In open-plan interiors, where sofas and rugs often float without a visual anchor, the medallion supplies the ordering element that furniture alone cannot.
The practical logic is simple. A medallion defines the seating zone, adds a second material palette without adding walls, and gives the room a detail worth stopping for. Spaces with a medallion read as intentional; spaces without one read as merely furnished. That is why, in the 180+ architectural projects coordinated under Dr. Liu Wei's fabrication workflow, the floor medallion is specified at concept stage — its diameter, stone colors, and pattern density determine how the entire surrounding floor is laid out.

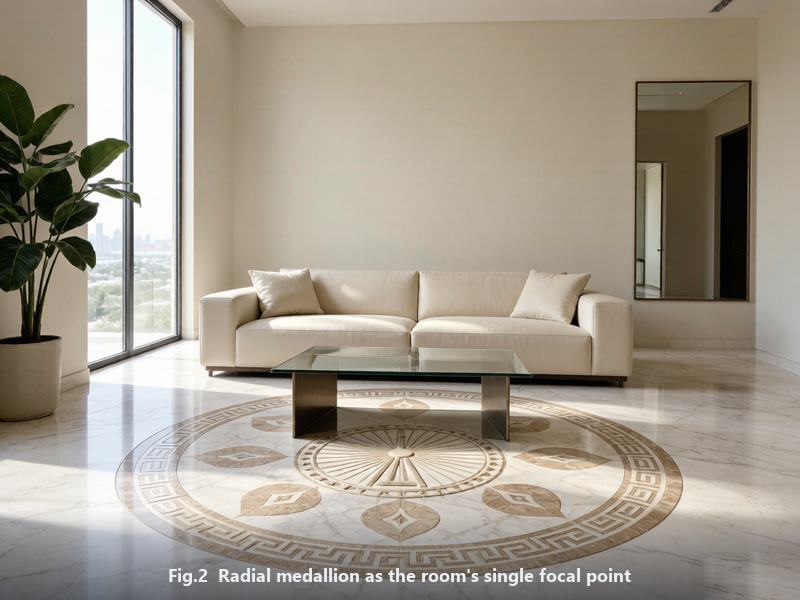

Dubai Eye Medallions: Radial Patterns with Middle Eastern Presence
The Dubai Eye has become one of the most requested medallion styles in Middle Eastern residential and hospitality interiors. It is not a single copyrighted design but a family of radial compositions: concentric rings arranged around a central rosette, with petal-like rays spreading outward like an iris. The eye-like silhouette explains the name; the visual pull explains the popularity. In villa foyers and palace living rooms, a Dubai Eye medallion in marble inlay turns the floor into the first conversation piece of the house.
The Anatomy of a Dubai Eye Pattern: Rings, Rays, and Contrast
A typical composition runs three to five rings, alternating light and dark stone — cream marble outside, Nero Marquina or black granite inside, sometimes a band of onyx or brass inlay between rings. Contrast does the heavy lifting: a dark ray against a cream field reads clearly from across the room, while an all-light palette flattens the pattern. Living room diameters commonly fall between 1,500 and 3,000 mm. Because waterjet cutting follows vector files, the same artwork scales from a 600 mm entry medallion to a 3,600 mm floor centerpiece without redrawing — the custom waterjet medallion programs at Ruifengyuan Stone simply rescale the cutting path.
Pairing Radial Medallions with Contemporary Furniture
Radial ornament and contemporary furniture are not in conflict, provided the floor stays disciplined. The medallion should be the only patterned element in the room: surrounding slabs in one calm tone, walls neutral, rugs plain or omitted. Where the sofa group sits directly over the medallion, a glass coffee table keeps the sight line open. This restraint is why the style appears as comfortably in modern penthouses as in classical interiors.
Chinese Pattern Medallions: Symbolic Motifs Cut in Marble
Chinese floor medallions translate a vocabulary of auspicious symbols from furniture inlay and textile embroidery into stone. For clients in China and Southeast Asia — and for overseas residences with Chinese cultural roots — these patterns are rarely chosen for looks alone. Each motif carries meaning, and the owner expects the fabricator to respect it.
Chinese Medallion Motifs: Cloud Scrolls, Ruyi, and Meander Borders
The meander border, huíwén (回纹), is a continuous fret symbolizing longevity and continuity, and it works naturally as a medallion's outer ring. Cloud scrolls, xiángyún (祥云), represent fortune and are often paired with a ruyi scepter head, a motif of authority and good wishes; coin patterns add prosperity symbolism. These motifs are friendly to waterjet fabrication because they are built from repeating geometry. A meander border on a 2,000 mm medallion may hold several hundred individual pieces, each cut to about ±0.5 mm and assembled in the factory before shipping.
Designing Chinese Medallions for Modern Living Rooms
Full traditional compositions can overwhelm a modern living room. The compromise used in recent villa projects: one symbolic motif instead of five, a cream or grey marble field, and dark stone reserved for the motif itself. The cultural reference stays legible while the room remains calm. A single ruyi or cloud motif centered in a plain ring reads as contemporary ornament rather than historical reproduction — the same symbol vocabulary that appears in marble mosaic art for feature walls.
Waterjet Cutting: The Fabrication Technology Behind Marble Inlay
None of these medallions would be practical without the cutting technology behind them. Abrasive waterjet cutting changed floor decoration the way the printing press changed text: what was once a months-long hand job is now a precise, repeatable process.
How Abrasive Waterjet Cutting Produces Tight Joint Lines
An abrasive waterjet pressurizes water to roughly 60,000 psi (about 4,100 bar) and mixes it with garnet abrasive to erode the stone. The cut generates no heat-affected zone, so edges do not micro-crack the way saw-cut edges can. Joint lines of about 0.5 mm are standard and are filled with color-matched epoxy during installation. With hundreds of pieces per medallion, that joint precision separates a floor that looks machined from one that looks assembled.
Choosing Stones for Medallions: Density, Veining, and Metal Inlay
Material selection follows traffic first, aesthetics second. Dense marbles such as Crema Marfil, Calacatta, and Nero Marquina handle residential foot traffic well; granite and quartzite suit entry medallions where grit and shoe soles do the most damage. Onyx is reserved for low-traffic accents or backlit panels, because translucency — not wear resistance — is the point. Brass and aluminum inlay lines are cut in a separate waterjet pass, slightly deeper, so the metal sits flush after polishing, as in waterjet marble flooring with metal inlay. The Natural Stone Institute property tables list typical marble compressive strength between 7,000 and 15,000 psi per ASTM C170, with water absorption around 0.02 to 0.10% per ASTM C97 — the reason dense marble survives decades of floor service while softer stone does not. Global dimension stone trade statistics, compiled annually by the United States Geological Survey, underline how international this material chain has become: a medallion designed in Dubai is routinely cut from blocks quarried on three continents.
Sizing and Placement Rules for Living Room Floor Medallions
The working rule in residential practice: medallion diameter between one-third and one-half of the room's shorter dimension. A living room 4.8 m wide takes a medallion of roughly 1.6 to 2.4 m; anything larger crowds the furniture, anything smaller reads as an accent tile. Entry foyers loosen the proportion to 60–70% of the opening width, because no furniture competes with the pattern. Ceiling height matters too: low ceilings suit flat two-ring designs; tall volumes carry multi-ring compositions comfortably.
Coordinating the Medallion with Furniture and Circulation
Place the medallion under the main seating cluster or on the central sight line toward the feature wall — not under the dining table, not in a corner. Keep at least 600 mm of plain floor between the medallion edge and the nearest wall or large furnishing so the pattern can be read whole. Where rugs are unavoidable, a medallion floor usually goes rug-free; the stone is the rug.
Installation and Long-Term Care of Custom Floor Medallions
Medallion Thickness, Backing, and Laying Sequence
Residential medallions are typically fabricated at 18 to 20 mm to match standard floor slab thickness; commercial projects with heavier loads specify 30 mm. The factory assembles the medallion on a fiberglass mesh backing, giving the installer a single unit to set. The site sequence is short: level the screed, dry-lay to check joints, bond with cementitious adhesive, fill joints with matched epoxy, then polish. The surrounding floor's thickness should match within about 1 mm to prevent lippage.
Sealing, Cleaning, and Refinishing a Marble Medallion
A penetrating sealer protects the surface without altering its look, and residential medallions generally need resealing every one to two years. Cleaning stays pH-neutral; acidic cleaners etch marble and dull a medallion within months. When years of traffic leave scratches, the medallion can be diamond-honed and repolished on site — the 18 to 20 mm thickness permits several refinishing cycles before the material is spent.
Frequently Asked Questions About Floor Medallions
What is the difference between a floor medallion and a floor border?
A floor medallion is a self-contained circular, oval, or geometric inlay placed at a focal point such as an entry or seating zone. A floor border is a linear band of contrasting stone running along wall edges or framing an entire room. Medallions organize space; borders define the perimeter. Many luxury floors combine both elements in one composition.
How is a custom floor medallion made from a client's artwork?
The process starts with a vector drawing. Stone colors are mapped to available slabs, pieces are cut on a waterjet machine, then dry-assembled on a mesh backing while joints are checked against a tolerance of about ±0.5 mm. The assembled medallion ships to site for installation. Lead time ranges from 15 to 40 days depending on complexity.
Which stone types are safest for medallions in heavy-traffic floors?
Granite and quartzite resist scratching and staining better than marble, making them the safer choice for entries and hallways. Where marble is preferred for aesthetics, select dense varieties with water absorption below 0.10% per ASTM C97, such as Crema Marfil or Nero Marquina. Honed finishes also disguise wear more effectively than high-gloss polish in traffic zones.
Is a floor medallion only suitable for classical interiors?
No. A medallion works in contemporary settings when the pattern is simplified: a two-ring concentric design, a single symbolic motif, or a monochrome palette of white and grey marble. Waterjet cutting produces clean, precise lines that suit minimalist furniture. Keep the surrounding floor plain so the medallion remains the only patterned element in the room.
What thickness should a floor medallion have?
Most residential medallions are fabricated at 18 to 20 mm thick to match standard floor slab thickness. Commercial projects with heavier loads sometimes specify 30 mm. Thickness affects structural stability and joint appearance, so the medallion should match the surrounding floor within about 1 mm to avoid lippage at the transition edge.
Can an existing marble floor be upgraded with a medallion later?
Yes, if the area has no radiant heating pipes below. The installer marks the pattern outline, saw-cuts the existing floor to depth, removes the tiles, prepares the substrate, and beds the medallion in place. Edges are finished with matching stone or metal trim. This retrofit upgrades a plain floor without replacing the entire surface.
