Mohs Hardness 3–7: How to Match Stone Hardness to the Right Space (3 Failure Autopsies)

TL;DR — Key Takeaways

• The rule that governs everything: match the stone's Mohs band to the abrasion the space actually delivers, not to the room's star rating — carbonates (marble, limestone, travertine, onyx) at Mohs 3–4 for walls and low-traffic zones, silicates (granite, quartzite) at 6–7 for hard floors and hand-height edges.
• Because street grit is mostly quartz (Mohs 7), every footstep on a polished Mohs-3 floor is a micro-sanding event — which is how a soft marble lobby can show a 1.8 m-wide dull wear ribbon just 14 months after opening.
• You can bracket any sample's hardness in about 90 seconds with five pocket tools: fingernail (≈2.5), copper coin (≈3.5), steel blade (≈5.5), steel file (≈6.5), unglazed ceramic tile (≈7).
• Over-specifying hardness wastes budget too: above Mohs 6, diamond tooling and machine hours rise sharply — we once moved a 260 sqm feature wall from granite to book-matched marble and returned roughly 38% of the material line to the client.
• Mohs says nothing about etching (chemical), chipping (toughness), or staining (porosity) — hardness is one axis of four, and this article ends with the three our QC team watches just as closely.

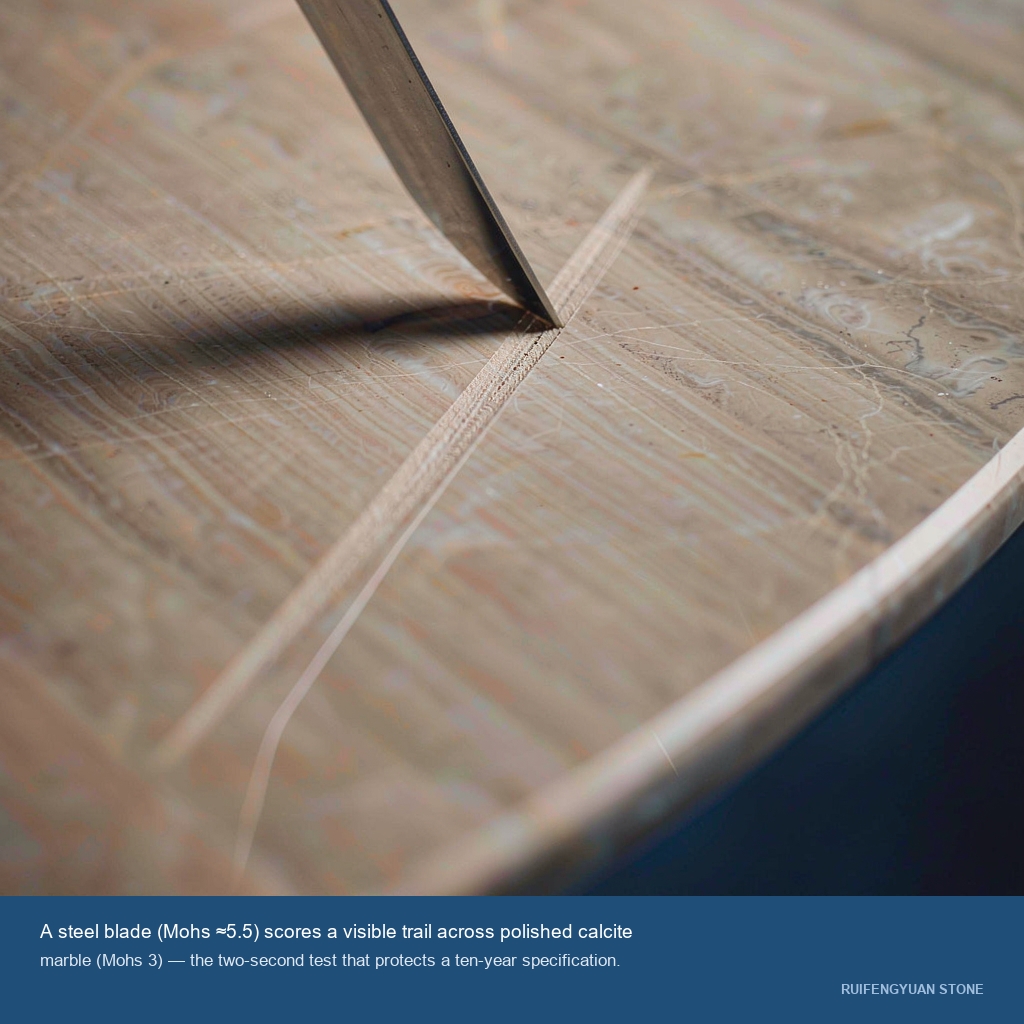

Pick the wrong hardness and the stone itself is usually innocent — the specification is what failed. After twelve years of quoting, auditing, and occasionally being hired to clean up after hardness mistakes, I can compress the whole science into one working rule: match the stone's Mohs band to the abrasion the space actually delivers, because the material's mineral chemistry — calcite versus quartz — sets its scratch resistance long before any maintenance contract can rescue it. Carbonate stones (marble, limestone, travertine, onyx) sit at Mohs 3–4 because calcite yields to a steel blade (≈5.5) in one pass; silicate stones (granite, quartzite) sit at 6–7 because their quartz grains are harder than the knife itself. Because most street grit is itself quartz, a polished Mohs-3 floor in heavy traffic is being lightly sanded with every step — which is why the failures are never sudden, and always visible in hindsight. In this article I autopsy three real hardness-mismatch projects I was involved with between 2023 and 2025, hand you the five-tool pocket kit our QC team uses to bracket any sample in about ninety seconds, and close with the space-by-space minimums our technical office actually specifies across 360,000 sqm of annual output.

A note on method before we begin: the three autopsies below all come from projects where my team was directly involved — two as the correcting supplier, one as the bidder who lost the argument and was later proved right, which I promise is the more instructive seat. I have changed identifying details where confidentiality requires; the numbers and failure mechanics are exactly as our project records hold them.

What the Mohs Scale Measures — and What It Quietly Ignores

In 1812, the German mineralogist Friedrich Mohs ranked ten common minerals by a brutally simple test: which one scratches which. I still run his test on customer samples almost every week of my working life. Talc sits at 1, gypsum 2, calcite 3, fluorite 4, apatite 5, orthoclase feldspar 6, quartz 7, topaz 8, corundum 9, and diamond 10. The Mindat.org glossary, maintained by the not-for-profit Hudson Institute of Mineralogy, defines the scale as a ranking in which each mineral scratches every mineral with a lower number. In my specification reviews, two properties of the scale matter more than all others, and both are routinely misread.

First — and I stress this in every spec review I chair — it is ordinal, not linear. Each step up the scale represents roughly 1.2–2.7 times more absolute grinding hardness than the last, and the gap from 9 to 10 is nearly five times — a span I raise whenever someone describes two stones as "one Mohs point apart" as though that were a small difference. Because the steps are unequal, a stone at Mohs 7 is not "a bit harder" than one at Mohs 3 — in abrasion terms it is in a different universe, which is precisely the difference between a lobby floor that dulls and one that does not.

Second, a stone inherits its hardness from its minerals — which is why, when our QC inspectors probe an unfamiliar block, we can usually call the family before the first scratch is made. Commercial stones cluster into two predictable bands:

Autopsy One: The Lobby That Wore Out in Fourteen Months

Case File 2023-H1 · 940 sqm · Gulf hotel

In early 2025 I was invited to re-quote the phase-two corridors of a Gulf coast hotel, and the walkthrough told me everything before anyone opened a drawing. The 940 sqm arrival lobby — polished beige calcitic marble, gleaming in the 2023 opening photos I later found online — now carried a dull, chalky ribbon about 1.8 m wide, running the 18 m from check-in desk to elevator bank. Under raking evening light I could read the floor like a footfall heatmap. The stone itself was not defective — I want that on the record. The slab grade was consistent, the installation was flat, and the veining matched beautifully. The floor had simply been sanded by its own guests for fourteen months: because street grit carried in on shoe soles is mostly quartz (Mohs 7), every step across a polished calcite surface (Mohs 3) is a micro-scratch event, and roughly 2,000 check-ins a day is a lot of steps.

The correction is the part I want specifiers to notice. We did not strip the marble out of the hotel — we moved it to where nothing touches it. The feature wall behind reception now carries the same stone that failed on the floor, and when I last saw it, at year two, it still photographed like day one. Because a vertical surface receives almost no abrasion, Mohs 3–4 stones are not a compromise on walls — they are the correct engineering, and the cheapest way to buy the dramatic veining that made you want marble in the first place.

Autopsy Two: The Reception Desk That Met the Handbags

Case File 2024-L2 · 6 running meters · London HQ

The second failure was smaller and stranger, and I took the call personally because my team had flagged it. A 2024 London headquarters reception desk in honed grey limestone (Mohs ≈3.5) came with a complaint five months after handover: a band of fine scratches along the front edge, at 95–110 cm height, catching the morning light exactly where visitors lean. No cleaning product had caused it, and — as my first video call with the facility manager established — no furniture had been dragged either. The timeline our facility-manager client assembled told the story:

• Month 0: Desk installed; honed finish approved on samples; our note recommending a Mohs 6+ edge material was declined to protect the monolithic look.
• Month 2: First micro-scratches noted by the cleaning contractor — assumed to be cleaning abrasion.
• Month 5: Scratch density mapped: the damage sits precisely at hand height, not across the whole surface.
• Month 5, week 2: Cause identified on site by our inspector: handbag hardware, belt buckles, watch straps, and suitcase corners leaning across the edge, day after day.

To my eye, that distribution was the giveaway: foot traffic had nothing to do with it, because nobody walks across a reception desk. Because the real threat to a hand-height surface is metal hardware on bodies and bags — most of it steel, Mohs 5–5.5 — the hardness a desk edge needs is set by the human anatomy of leaning, not by the floor standard in the corridor outside. The client kept the limestone and chose to re-hone the edge band twice a year as an accepted patina, which is a legitimate answer; the alternative we had proposed was a quartzite edge wrap at fabrication, which would have cost about 4% more and closed the file on day one.

Autopsy Three: The Granite Wall Nobody Would Ever Touch

Case File 2025-C3 · 260 sqm · Cultural center

The third autopsy is the failure almost nobody talks about: over-specification. In a 2025 cultural-center bid, I read tender documents that demanded granite (Mohs 6–7) for a 260 sqm feature wall — a surface standing behind a viewing barrier, two meters beyond the reach of any visitor, in a room with controlled traffic. Our engineers reviewed the spec and pushed back, because we could see what the hardness was costing the project:

The committee accepted our substitution, and the roughly USD 15,000 it released went into a matching marble floor border for the same room — more visible stone for the same budget, and a better one, as the client's project director told me later. Because hardness above Mohs 6 is bought with diamond tooling and machine hours, specifying it where no abrasion will ever arrive is not prudence — it is the most expensive way to say "harder is better." My rule for the opposite mistake is symmetrical: on a floor or a hand-height edge, soft stone is a scheduled maintenance contract; on a protected wall, hard stone is a donation to the tooling industry.

The Five-Tool Pocket Kit: Bracket Any Sample in Ninety Seconds

Every QC inspector on our floor carries the same five probes, and none of them costs more than a coffee. Used in order, they bracket a stone's hardness between two values in about ninety seconds; I have watched a new inspector learn it in a single morning:
