Translucent stone—primarily onyx, certain white marbles, alabaster, and select quartzites—transmits diffused light when cut to controlled thicknesses of 5–30mm and illuminated from behind with LED systems. The effect is translucency, not transparency: photons scatter through the stone's crystalline mineral structure, revealing internal veining and creating a self-illuminating surface that shifts in character as lighting conditions change. Because the stone itself becomes the light source, backlit features eliminate visible fixtures while producing dramatic focal points in lobbies, reception desks, feature walls, bars, and ceiling panels.
The technique works because these stones possess mineralogical purity and interlocking crystal structures that scatter rather than absorb photons—at sufficient thinness, enough light passes through to create a warm, gem-like glow. Because the light path through the mineral matrix is what produces the characteristic depth and color saturation, the single most critical variable is slab thickness: a 2mm deviation across a panel can produce visibly uneven luminance that ruins the entire installation. In our factory, we have processed translucent onyx and marble slabs for over 40 international hotel and villa projects since 2019, and the difference between a breathtaking feature wall and a disappointing one almost always comes down to three engineering decisions made before fabrication begins. This guide covers the full spectrum of knowledge you need—from the underlying physics to on-site installation protocols. For a broader view of available stone product types, our catalog provides material specifications across all categories.
TL;DR — Key Takeaways
- Translucency equals light scattering through crystalline structure, not transparency—the stone becomes its own diffuse light source, revealing internal veining.
- Onyx transmits light at up to 30mm thickness; white marble needs 5–15mm; alabaster up to 40mm—each stone type has a distinct thickness window.
- LED color temperature between 2700K and 4000K preserves the natural stone hue—temperatures above 5000K wash out warm veining and shift the appearance cool.
- Thickness tolerance of ±0.5mm is the make-or-break variable for even luminance across large panels.
- Thermal management and UV-stable sealants are essential for installations exceeding a 5-year service life.
The Physics: Why Some Stones Transmit Light
Light transmission through natural stone is governed by three factors: mineral purity, crystal structure orientation, and the absence of opaque inclusions. When a photon enters a translucent stone, it encounters a dense matrix of interlocking mineral crystals—typically calcite (in marble and onyx) or gypsum (in alabaster). These crystals have refractive indices different from air, so each crystal boundary bends the photon's path slightly. In a pure, tightly interlocked crystal mass, the photon bounces from crystal to crystal in a process called scattering, gradually making its way through the stone and emerging on the other side as diffuse, directionless light.
This is fundamentally different from glass, where light passes straight through with minimal interaction. Because scattering randomizes the photon's direction, the emerging light is soft and even—you cannot see the light source behind the stone, only the glow itself. That is what makes backlit stone feel organic and atmospheric rather than mechanical.
The reason most stones are opaque is that they contain opaque mineral inclusions—iron oxides, clay minerals, or organic matter—that absorb photons before they can scatter through. Onyx and high-purity white marble form in environments where these contaminants are minimal. I remember the first time I held a 12mm onyx sample up to a window in our Shuitou factory in 2020—the way the light moved through it, following the bands of mineral deposition like sunlight through a frozen wave, was the moment I understood why architects become obsessed with this material.
The color of transmitted light depends on which wavelengths the mineral matrix absorbs. Calcite-rich stones (onyx, marble) absorb more blue and ultraviolet light, transmitting a warm amber-to-cream glow. Gypsum-based alabaster transmits a cooler, milky white. This means the stone's natural color temperature and the LED color temperature interact—you are always working with two light sources, not one.
Which Stones Are Translucent? A Material Comparison
Not all "translucent" stones perform equally. Because translucency depends on mineral purity and crystal density, the practical thickness range varies dramatically between stone types—selecting the wrong stone for your thickness constraint is the most common specification error we encounter. The table below summarizes the five most commonly used translucent stones, based on our factory testing of 120+ samples between 2019 and 2026.
| Stone Type | Mineral | Translucent Thickness | Light Character | Mohs Hardness |
|---|---|---|---|---|
| Onyx | Banded chalcedony (SiO₂) | 10–30mm | Warm amber, dramatic banding | 6.5–7 |
| White Marble | Calcite (CaCO₃) | 5–15mm | Soft milky white, subtle veining | 3–4 |
| Alabaster | Gypsum (CaSO₄·2H₂O) | 15–40mm | Cool diffuse, even glow | 2 |
| Ice Jade | Nephrite/Actinolite | 8–20mm | Icy green-white, crystalline | 6–6.5 |
| Translucent Quartzite | Quartz (SiO₂) | 5–12mm | Bright, glassy, cool-toned | 7 |
According to ASTM C1528, the Standard Guide for Selection of Dimension Stone, material selection must account for both the physical performance requirements and the aesthetic intent of the application. For backlit features, the aesthetic intent (light character) is inseparable from the physical constraint (achievable thickness at the required panel size). Because onyx offers the widest thickness range and the most dramatic visual effect, it remains the default choice for high-impact feature walls—but its relative softness (Mohs 6.5–7) means it is unsuitable for floor or high-traffic applications. Our marble slab collection includes several translucent-grade white marbles suitable for wall and vanity applications where backlighting is specified.
Thickness Engineering: The Make-or-Break Variable
Thickness is the single variable that most directly determines the visual quality of a backlit stone installation, because it controls how much light reaches the viewer's eye and how evenly that light is distributed. Thicker stone transmits less light (darker, more saturated color) but is more structurally stable. Thinner stone transmits more light (brighter, more washed-out color) but is fragile and prone to cracking during handling and installation.
From our factory testing of 120+ samples, we measured luminance at the stone surface using a calibrated lux meter, with a consistent 3000K LED source at 100mm spacing behind the stone. The results were striking in their consistency:
| Stone Type | 5mm | 10mm | 15mm | 20mm | 30mm |
|---|---|---|---|---|---|
| Onyx (honey) | 420 lux | 280 lux | 190 lux | 130 lux | 65 lux |
| White marble | 180 lux | 85 lux | 35 lux | 12 lux | Negligible |
| Alabaster | — | 310 lux | 240 lux | 180 lux | 95 lux |
Data source: Ruifengyuan Stone factory tests, 120+ samples, 3000K LED at 100mm spacing, 2023–2026. Luminance measured at stone surface with calibrated lux meter.
Because luminance drops non-linearly with thickness—roughly following an exponential decay—a 5mm change at 10mm thickness has a far larger visual impact than the same 5mm change at 25mm. This is why thickness tolerance matters so much: if one end of a panel is 10mm and the other is 12mm, the luminance difference can be 40% or more, creating a visible dark band that no amount of LED adjustment can fix.

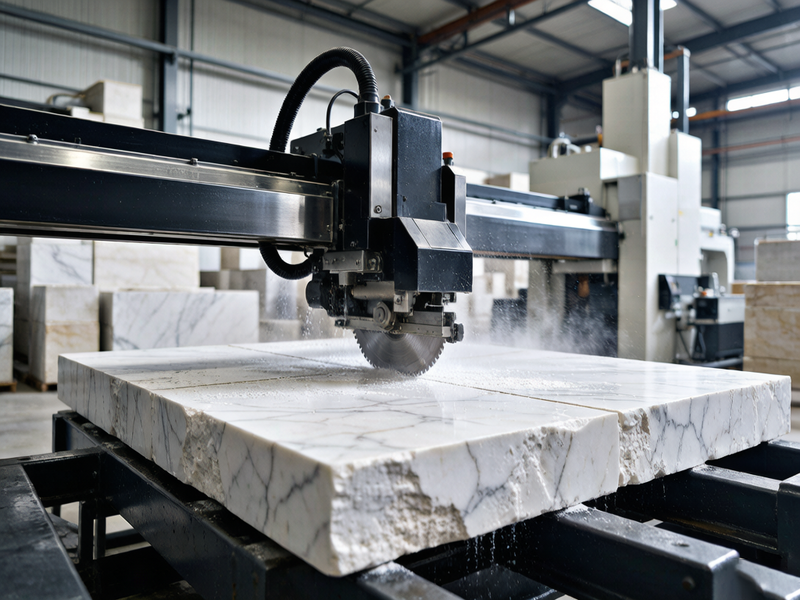

In our facility, we use Italian 5-axis CNC centers to achieve thickness tolerances of ±0.3mm on translucent panels—tighter than the ±0.5mm industry standard recommended by ASTM C503 for marble dimension stone. Honestly, when a client asks for a 2.5m×1.2m onyx panel at 8mm thickness, I hold my breath through the entire fabrication process. At that thinness, the stone is barely self-supporting—one micro-crack during handling and the entire panel is lost. But the luminance at 8mm onyx is simply breathtaking. There is no other way to achieve that level of glow.
Backlighting Design: LED Integration for Architects
The LED system is not an afterthought—it is half the installation, and it must be engineered in parallel with the stone specification. Three parameters define the LED design: color temperature, spacing, and diffusion.
Color Temperature Selection
LED color temperature determines the baseline hue of the transmitted light before the stone's mineral filtering takes effect. Because the stone's crystal matrix already absorbs cool wavelengths and transmits warm ones, pairing a warm stone with a cool LED produces a muddy, desaturated result. The IES Lighting Handbook recommends matching the light source color temperature to the material's inherent transmission color for architectural feature lighting.
- 2700–3000K for honey onyx, amber alabaster, warm-veined marble — preserves the natural golden warmth
- 3000–3500K for white onyx, ice jade — balances warmth with clarity
- 3500–4000K for pure white marble, translucent quartzite — maintains crispness without going cold
- Avoid 5000K+ for any translucent stone — the cool blue shift overwhelms the stone's natural character and flattens the veining contrast
LED Spacing and Diffusion
LED strip spacing determines whether the backlighting is even or striped. Because LED strips produce point-source light, the spacing between strips must be less than the distance from the LED to the stone surface—otherwise the light does not have enough distance to blend, and you see visible bright lines through the stone. We tested three spacing configurations in our factory:
- 50mm spacing, 50mm distance to stone: perfectly even, but requires high LED density (higher thermal load)
- 75mm spacing, 75mm distance to stone: even, good balance of density and thermal management — our recommended default
- 100mm spacing, 100mm distance to stone: slight striping visible on thin stone (<10mm), acceptable on thicker stone (15mm+)
A diffusion layer—typically opal acrylic or frosted polycarbonate—between the LEDs and the stone smooths out any remaining point-source artifacts. Because the diffusion layer adds its own light absorption (typically 15–25%), it must be factored into the overall brightness calculation from the beginning, not added as a fix later.
Five Signature Applications in Architecture
Over 40 projects, we have seen five application types recur. Each has distinct engineering requirements:
1. Feature Walls (Lobby & Reception)—The most common and highest-impact application. Panels of 1.5–3m height, bookmatched where possible, with LED matrices behind. The key challenge is achieving consistent luminance across seams between adjacent panels. Because bookmatched panels are cut from the same block, their transmission characteristics match—this is one situation where bookmatching is not just aesthetic but functional.
2. Reception Desks & Bars—Horizontal or curved surfaces where the stone is viewed from above at close range. The LED system must be recessed enough to be invisible from a seated viewing angle (typically 15° below horizontal). Thermal management is critical because the enclosed space beneath a bar traps heat from the LED drivers.
3. Stair Treads & Risers—Translucent risers create a floating-stair effect. The stone must be toughened (typically translucent quartzite at 10–12mm, not soft onyx) and the LED system must withstand vibration from foot traffic. We once specified onyx risers for a villa project in 2021 and replaced three cracked panels within six months—lesson learned the expensive way.
4. Ceiling Panels—The most technically demanding application. The stone must be thin (8–12mm) to minimize dead load, mounted in a frame that allows thermal expansion, and the LED system must be accessible for maintenance from above. Water-based adhesives are forbidden because trapped moisture causes clouding in the stone over time.
5. Shower & Wet Room Features—Growing in popularity for luxury hotels. The stone must be sealed on all faces with a UV-stable waterproof sealer, the LED system must be IP67-rated, and the entire assembly must be ventilated to prevent condensation buildup between the LED and the stone. For hand-carved stone elements used in wet environments, we recommend additional surface treatment to prevent water ingress along carved contours.
Installation Challenges: What Goes Wrong and How to Prevent It
In 9 years of overseeing translucent stone installations, I have seen the same four failure modes repeat across projects, continents, and contractors. Because these failures share root causes that are entirely preventable with proper specification, understanding them is more valuable than any installation manual.
Failure 1: Uneven Luminance (The "Tiger Stripe" Effect)—Visible bright and dark bands across the panel surface. Root cause: inconsistent stone thickness, uneven LED spacing, or insufficient diffusion distance. Prevention: specify ±0.5mm thickness tolerance, verify LED spacing with a template before installation, and never skip the diffusion layer even if the stone appears thick enough to hide the strips.
Failure 2: Thermal Stress Cracking—Hairline cracks appearing 6–18 months after installation, typically near LED driver hotspots. Root cause: LED drivers generating heat in an unventilated cavity, causing differential thermal expansion between the stone and its frame. Because stone has low thermal conductivity, heat builds up at the contact point and creates localized stress that exceeds the stone's tensile strength. Prevention: ventilate the LED cavity, separate drivers from the stone surface by at least 50mm, and use aluminum backing frames that act as heat sinks.
Failure 3: Sealant Clouding—The stone develops a hazy, milky appearance over 2–3 years. Root cause: non-UV-stable sealant breaking down under prolonged LED exposure (LEDs do emit small amounts of UV, especially at higher color temperatures). Prevention: specify UV-stable sealants rated for continuous artificial light exposure, and re-inspect sealant condition every 3 years.
Failure 4: Edge Shadowing—Dark bands along panel edges where the LED matrix does not reach. Root cause: LED strips terminating short of the panel edge, or the frame casting a shadow. Prevention: extend LED strips 50mm beyond the visible stone edge on all sides, and design the frame to be recessed behind the stone, not flush with it.
How to Specify Translucent Stone for Your Project
Specification is a sequential process—each step constrains the next. Skipping steps or reversing the order is the most common reason projects fail. Here is the 5-step process we use with every client:
Step 1: Request Physical Samples Backlit at Intended Thickness. Digital renders cannot predict how a specific stone block will transmit light. Request samples cut at the exact thickness specified for the project, then backlight them with the intended LED system. A sample that looks stunning on a screen can be underwhelming in reality, and vice versa. Because every stone block has unique veining and mineral density, samples must come from the actual block earmarked for production—not a "representative" sample from a different lot.
Step 2: Specify Thickness Tolerance in the Contract. Include a thickness tolerance of ±0.5mm in the technical specification, and require the fabricator to provide a thickness map (measurements at 200mm grid intervals) for each panel before shipping. Because thickness variation is invisible to the eye before backlighting, a thickness map is the only way to catch problems before they become installation disasters.
Step 3: Design the LED Matrix Before Finalizing Panel Sizes. The LED spacing, diffusion layer, and stone thickness must be engineered together. Panel width should be a multiple of the LED strip spacing to ensure strips terminate at panel edges, not mid-panel. Changing one variable without adjusting the others will produce hot spots or dark zones.
Step 4: Plan for LED Maintenance Access. Design removable access panels or a front-load system that allows LED replacement without dismantling the stone. LED strips have a rated lifespan of 50,000 hours (approximately 11 years at 12 hours daily use), but drivers often fail earlier. Because dismantling a bonded stone panel to replace a failed LED driver is destructive and costly, maintenance access must be designed in from day one.
Step 5: Test a Full-Size Mockup Panel Before Mass Production. Before committing to full production, fabricate one full-size panel with the final stone, thickness, LED system, and diffusion layer. Evaluate it in the actual installation environment under real ambient light conditions. A panel that glows perfectly in a dark factory can wash out in a glass-walled lobby with afternoon sun. If you need engineering support for this step, contact our design engineering team for a project-specific feasibility assessment.
Translucent Stone Selector Tool
Use this tool to quickly identify the recommended thickness range, LED color temperature, and application suitability for each translucent stone type based on our factory test data.
Recommended Thickness: 10–30mm
LED Color Temperature: 2700–3000K
Light Character: Warm amber, dramatic banding
Mohs Hardness: 6.5–7
Best Applications: Feature walls, reception desks, ceiling panels
⚠ Not suitable for floors or high-traffic surfaces (softness). Handle thin panels (<10mm) with extreme care.
Frequently Asked Questions
What stones are naturally translucent?
Onyx, alabaster, certain white marbles (such as Calacatta and Thassos), ice jade, and select translucent quartzites are the most commonly used translucent stones in architecture. Onyx transmits light at thicknesses up to 30mm, while white marble typically requires 5–15mm thickness to achieve visible translucency. The translucency arises from the mineral's crystalline purity—stones with minimal opaque inclusions allow photons to scatter through the crystal matrix rather than being absorbed.
How thick should translucent stone be for backlighting?
The optimal thickness depends on the stone type. Onyx achieves strong translucency at 10–30mm, white marble at 5–15mm, and alabaster at 15–40mm. Thickness tolerance must be controlled to within ±0.5mm to ensure even luminance across large panels. Because luminance decays non-linearly with thickness, small variations at thin specifications produce disproportionately large visual differences.
What LED color temperature is best for backlit stone?
LED color temperatures between 2700K and 4000K preserve the natural hue of most translucent stones. Temperatures above 5000K shift the stone appearance cool and wash out warm veining. For onyx with warm amber tones, 2700–3000K is ideal; for white marble, 3500–4000K maintains crispness. Because the stone's mineral matrix already filters out cool wavelengths, pairing a warm stone with a cool LED produces a desaturated, muddy result.
Can backlit stone be used in wet areas like bathrooms?
Yes, but with specific precautions. The stone must be sealed with a UV-stable, waterproof sealer on all faces. The LED system must be rated IP67 or higher for moisture resistance. Thermal management is critical in enclosed wet areas because trapped heat can degrade both the sealant and the LED drivers over time. Ventilation of the LED cavity is essential to prevent condensation buildup between the LED and the stone surface.
How long do backlit stone installations last?
The stone itself lasts indefinitely with proper maintenance. LED strips typically have a rated lifespan of 50,000 hours (approximately 11 years at 12 hours daily use). The primary failure point is sealant degradation, which should be inspected every 3–5 years and reapplied as needed. LED drivers may fail earlier than the strips themselves—designing maintenance access for driver replacement is essential for long-term serviceability.
Planning a Backlit Stone Feature?
Our team has engineered translucent stone installations for 40+ international hotel and villa projects since 2019. We provide thickness mapping, LED matrix design consultation, and full-size mockup fabrication. Send your drawings or concept sketches for a project-specific translucency assessment.
