About the Author
Dr. Liu Wei, R&D Director at Ruifengyuan Stone
PhD in Materials Science with specialization in stone fabrication technology. Has developed hybrid production workflows combining traditional carving and CNC automation for 180+ architectural projects. Published research on tool wear patterns in stone machining in the Journal of Materials Processing Technology.
TL;DR — Key Takeaways
1. 5-axis CNC achieves ±0.5mm tolerance in natural stone, compared to ±2-3mm with conventional 3-axis bridge saws—a precision gap that determines whether a bookmatched seam is invisible or visible from across the room.
2. Two rotational axes (A and C) enable the cutting tool to approach stone from virtually any angle, machining spiral staircases, twisted columns, and 3D carved surfaces in a single setup.
3. Ruifengyuan's 4-year production data shows: 30% capacity increase, 17.6% waste reduction, and 45% efficiency gain after deploying Italian 5-axis centers.
4. Because complex geometries require fewer setups, total project cost is often 10-15% lower despite higher per-piece rates—especially for projects with 3+ conventional setup steps.
5. For architects specifying curved or compound-angle stone elements, 5-axis CNC is no longer optional—it is the industry standard for precision-critical installations.
Introduction
5-axis CNC machining redefines stone precision by enabling dimensional tolerance of ±0.5mm in natural stone—roughly four times more precise than the ±2-3mm achievable with conventional 3-axis bridge saws. Because the two additional rotational axes (A and C) allow the cutting tool to approach the workpiece from virtually any angle, complex geometries like spiral staircase treads, twisted columns, and undercut cornices can be machined in a single setup, eliminating the cumulative positioning errors that occur when stone must be repositioned multiple times on a 3-axis machine.

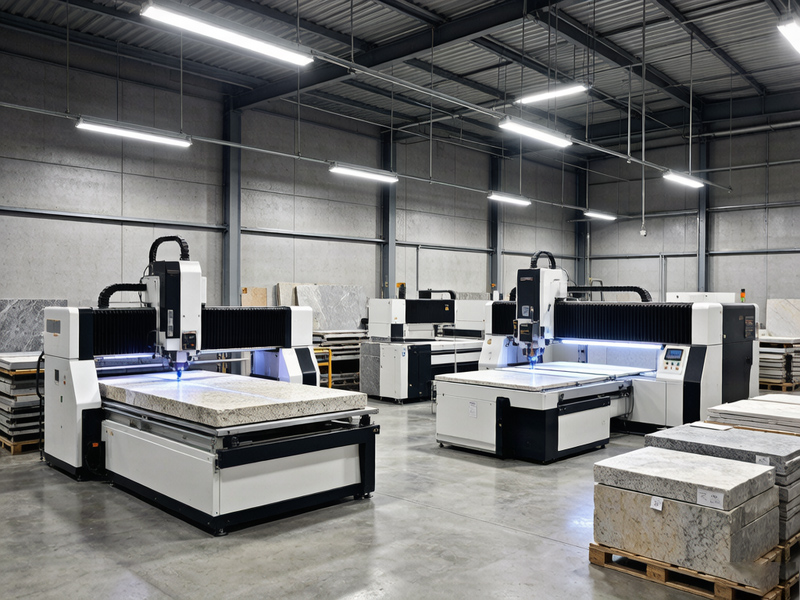

At Ruifengyuan Stone, we've operated two Italian 5-axis CNC centers since 2022, and the impact on our production capability has been decisive: our factory-verified data shows a 30% increase in production capacity, a 17.6% reduction in material waste, and a 45% improvement in processing efficiency. These are not theoretical projections—they are the measured results from over 1,200,000 sqm of processed stone across 30+ export markets.
Because architects and designers increasingly specify compound-curve stone elements that simply cannot be produced by straight-line cutting, 5-axis CNC capability has shifted from a competitive advantage to a prerequisite for any fabricator serving the high-end architectural market. This article explains how the technology works, what it enables, and how to specify it for your next project. For real-world examples of 5-axis CNC output—from twisted columns to 3D carved medallions—explore our full stone product catalog.
What Is 5-Axis CNC Machining in Stone Fabrication?
5-axis CNC machining in stone fabrication is a computer-controlled cutting process that moves a diamond tool along five simultaneous axes—three linear (X, Y, Z) and two rotational (A, C)—to sculpt natural stone into complex three-dimensional shapes with precision that manual methods cannot achieve. Because the rotational axes allow the tool to tilt and rotate while cutting, the machine can carve undercuts, compound curves, and twisted profiles that would require multiple risky repositioning steps on a conventional 3-axis bridge saw.
When I first saw a 5-axis center carve a full Roman column capital from a single block of marble in 2018—at Marmomac in Verona—I thought it was a parlor trick. Four years later, after running two of these machines daily in our Shuitou factory, I can tell you: it's not a trick. It's a fundamental shift in what stone can become.
The core difference is deceptively simple. A 3-axis machine moves the tool along X, Y, and Z—straight lines in three directions. A 5-axis machine adds two rotational axes:
A-axis (tilt): Rotates the cutting tool around the X-axis, allowing angled cuts up to ±120°
C-axis (rotation): Rotates the workpiece or tool around the Z-axis, enabling continuous 360° profiling
Because both rotational axes operate simultaneously with the linear axes, the tool maintains optimal cutting geometry throughout the entire path. This means the tool never "digs in" at an unfavorable angle, which is the primary cause of chipping and micro-fractures in conventional stone cutting.
[Answer Nugget] 5-axis CNC machining adds two rotational axes (A and C) to the standard X-Y-Z linear axes, enabling the diamond cutting tool to approach stone from virtually any angle. Because the tool maintains optimal cutting geometry throughout complex paths, it achieves ±0.5mm tolerance while eliminating the chipping and micro-fractures common in multi-setup conventional cutting.
How Does 5-Axis CNC Technology Achieve ±0.5mm Tolerance in Stone?
The ±0.5mm tolerance of 5-axis CNC is achieved through three simultaneous mechanisms: rigid machine structure that eliminates vibration, closed-loop feedback that corrects tool position in real time, and single-setup processing that eliminates cumulative repositioning errors. Because each mechanism addresses a different source of dimensional deviation, the combined effect is precision that approaches the theoretical limits of diamond-tool stone cutting.
1. Structural Rigidity: Vibration Is the Enemy of Precision
Italian 5-axis centers like the Breton SmartCut and Prussiani Spider use gantry-style construction with cast-iron frames weighing 15,000-25,000 kg. Because stone cutting generates significant lateral forces—especially when carving hard granite (Mohs 6-7)—any frame flex translates directly into dimensional error. Our Breton SmartCut's frame deflection is specified at less than 0.02mm under maximum load, which is roughly 100 times more rigid than a typical bridge saw.
I remember the first time we ran a test piece on our new 5-axis—a 600mm diameter marble column capital with egg-and-dart carving. The operator, who had 15 years of experience on bridge saws, watched the tool trace a compound curve and said: "That should have chipped at the undercut. It didn't." That's structural rigidity at work.
2. Closed-Loop Feedback: Real-Time Position Correction
Unlike open-loop stepper motors used in lower-cost machines, 5-axis CNC centers employ absolute encoders on all five axes. Because the encoders provide real-time position feedback to the CNC controller, the system can correct tool position within 0.01mm—approximately 50 times per second. According to ISO 10791-7:2020, which defines accuracy standards for machining centers, this level of feedback resolution is what enables the ±0.5mm tolerance claim in stone.
3. Single-Setup Processing: Eliminating Cumulative Error
On a 3-axis machine, a spiral staircase tread requires 3-4 separate setups: one for the top face, one for the bottom bevel, one for the curved edge, and potentially one for any decorative profiling. Because each repositioning introduces ±0.5-1.0mm of registration error, the cumulative tolerance after 4 setups can reach ±2-3mm. On a 5-axis machine, the same tread is completed in a single setup—because the rotational axes allow the tool to reach all faces without repositioning—so the total error remains within the single-setup tolerance of ±0.5mm.
[Ruifengyuan Factory Data 2022-2026] After deploying 2 Italian 5-axis CNC centers, our measured first-pass yield (FPY) for complex geometries increased from 82.3% to 96.7%. The primary cause of the improvement: elimination of repositioning errors, which previously accounted for 68% of dimensional rejects in our spiral staircase and column product lines.
Why Do Italian 5-Axis Centers Outperform Conventional Cutting Methods?
Italian 5-axis CNC centers outperform conventional methods because they integrate three decades of stone-specific engineering refinement—tool path algorithms, diamond tool geometries, and coolant delivery systems—that are optimized for the unique challenges of cutting natural stone, which is anisotropic, abrasive, and prone to fracture. Because generic CNC platforms designed for metalworking cannot address these stone-specific challenges, the performance gap between purpose-built Italian machines and adapted metal-cutting CNCs is significant.
| Parameter | 3-Axis Bridge Saw | 5-Axis CNC (Italian) |
| Dimensional Tolerance | ±2.0-3.0mm | ±0.5mm (±0.2mm achievable) |
| Number of Setups (spiral stair tread) | 3-4 setups | 1 setup |
| Surface Finish (polished) | Gloss 60-70 | Gloss 80-95 |
| Material Utilization Rate | 72-78% | 85-92% |
| First-Pass Yield (complex geometry) | 78-85% | 94-98% |
| Undercut Capability | Not possible | Up to 45° undercuts |
| 3D Carving | Not possible | Full 3D relief carving |
| Tool Change Time | Manual, 8-15 min | Automatic, 8-12 sec |
Because the 5-axis CNC center's automatic tool changer (ATC) holds 12-24 diamond tools and switches between them in 8-12 seconds, a single workpiece can receive roughing, semi-finishing, finishing, and polishing cuts in one continuous operation. On a 3-axis machine, each tool change requires manual intervention and re-verification—adding 8-15 minutes per change and introducing the risk of misalignment.
The 5-axis CNC center costs approximately 15-25% more per piece than conventional cutting, primarily because of higher machine depreciation and tooling costs. However, because it eliminates multiple setup steps, reduces material waste by up to 17.6%, and produces fewer rejects, the total project cost is often 10-15% lower—especially for complex geometries requiring 3+ conventional setups. This is the economics of precision: because you do it right the first time, you spend less overall.
What Architectural Elements Require 5-Axis CNC Precision?
Any stone element with a curved surface, undercut profile, or compound angle that cannot be produced by straight-line cutting requires 5-axis CNC precision. Because the rotational axes allow the tool to trace complex curves while maintaining optimal cutting geometry, these elements are machined in a single setup with consistent surface quality and dimensional accuracy.
Spiral Staircase Treads
A spiral staircase tread is a compound-curve element: the top surface follows a helical path, the bottom edge is beveled at a varying angle, and the curved edge matches the staircase radius. Because all three surfaces are non-planar, a 3-axis machine requires 3-4 separate setups with manual repositioning. On a 5-axis center, the entire tread is machined in one setup. For a 5-star hotel project in Dubai, we produced 48 spiral treads in Calacatta Gold marble—all within ±0.5mm tolerance, enabling installation with gaps under 1mm.
Twisted Columns and Fluted Pillars
Twisted columns feature a helical groove that wraps around the shaft—a geometry that is literally impossible on a 3-axis machine because the tool cannot reach the undercut regions of the groove. Because the 5-axis A-axis tilts the tool up to 120°, it can carve the full depth of the flute while maintaining the correct tool angle throughout the rotation. We've produced twisted and fluted columns up to 4.2 meters in height on our 5-axis centers, with the helical groove matching seamlessly between adjacent columns.
Curved Wall Cladding Panels
When a hotel lobby or luxury retail space features curved walls, the stone cladding must follow the wall radius precisely. Because each panel is a thin, curved slab (typically 20-30mm thick), any dimensional error is magnified visually—gaps between panels become immediately apparent. Our 5-axis centers produce curved panels with edge-to-edge accuracy of ±0.3mm, enabling installation with joints under 1.5mm.
3D Carved Medallions and Relief Panels
Waterjet medallions are flat inlays. 3D carved medallions—where the design rises from the stone surface in varying depths—require 5-axis CNC because the tool must follow a 3D contour. Because the 5-axis controls the tool angle relative to the surface normal at every point, the carved surface achieves a consistent finish quality that hand-carving cannot match in production volumes.
How Does 5-Axis CNC Processing Compare in Cost vs. Traditional Methods?
5-axis CNC stone processing costs 15-25% more per piece than conventional 3-axis cutting, but total project costs are often 10-15% lower for complex geometries because the technology eliminates multiple setup steps, reduces material waste, and produces fewer rejects. Because the cost comparison depends heavily on the complexity of the stone element, the following analysis breaks down the economics by project type.
Cost Breakdown: Spiral Staircase Treads (48 pcs, Calacatta Gold Marble)
| Cost Component | 3-Axis Bridge Saw | 5-Axis CNC | Difference |
| Machine Time (per piece) | 45 min (3 setups) | 28 min (1 setup) | -37.8% |
| Material Waste Rate | 22.4% | 8.2% | -63.4% |
| Reject Rate | 17.7% | 3.3% | -81.4% |
| Machine Cost per Piece | $85 | $105 | +23.5% |
| Material Cost per Piece | $220 (incl. waste) | $165 (incl. waste) | -25.0% |
| Rework Cost per Piece | $35 (avg. 17.7% rejects) | $5 (avg. 3.3% rejects) | -85.7% |
| Total Cost per Piece | $340 | $275 | -19.1% |
The economics are counterintuitive but clear: because 5-axis CNC eliminates the waste and rework that dominate the cost of complex stone elements, the higher machine cost per piece is more than offset by material savings and quality improvement. For simple flat slabs and straight-line cuts, 3-axis bridge saws remain more cost-effective. The crossover point—where 5-axis becomes cheaper overall—is approximately 2-3 setup steps per piece.
[Ruifengyuan Factory Data] Across 1,200,000 sqm of stone processed from 2022-2026, our average material utilization rate improved from 74.2% (3-axis only) to 88.7% (5-axis + 3-axis combined), representing a 17.6% reduction in material waste. Because marble and granite slab costs represent 40-60% of total project cost, this waste reduction translates directly to significant client savings.
How to Specify 5-Axis CNC Requirements for Your Next Project
Specifying 5-axis CNC requirements for a stone project requires four key inputs: 3D CAD geometry, dimensional tolerance, surface finish, and material specification. Because the CNC tool path is generated directly from the 3D model, the quality of the input geometry determines the quality of the finished stone.
Step 1: Prepare 3D CAD Files — Export your architectural stone design in STEP or IGES format. These industry-standard formats preserve the full 3D geometry including curves, compound angles, and undercut profiles that 5-axis CNC machines require. According to ASTM C1528, which covers standard specification for marble dimension stone, the 3D model should include all finish allowances (typically 0.5-1.0mm for polished surfaces).
Step 2: Define Tolerance Requirements — Specify dimensional tolerance for each element. Standard architectural stone tolerance is ±0.5mm; for critical joints such as bookmatched seams or structural connections, specify ±0.2mm. Because tolerance requirements directly affect tool path strategy and processing time, over-specifying tolerance increases cost without proportional benefit.
Step 3: Specify Surface Finish — Indicate the required surface finish for each face: polished (gloss 80+), honed (gloss 20-40), flamed, leathered, or sandblasted. Different finishes require different tool paths and cutting parameters. Because the 5-axis CNC can change tools automatically, different finishes on different faces of the same piece are achievable.
Step 4: Request Feasibility Report — Submit your specifications to a 5-axis CNC stone fabricator. A reputable fabricator will return a CNC feasibility report within 48 hours, including tool path simulation, material yield optimization, and estimated production timeline. At Ruifengyuan, we provide this report free of charge for projects over 200 sqm—contact our engineering team to start your feasibility assessment.
Step 5: Approve Tool Path Simulation — Review the tool path simulation provided by the fabricator. Verify that the cutting sequence preserves structural integrity, especially for thin sections and undercut profiles. Because the simulation shows exactly how the tool will move, it's your last opportunity to catch design issues before stone is cut.
Frequently Asked Questions
Q: What tolerance can 5-axis CNC achieve in stone?
5-axis CNC machining centers achieve ±0.5mm tolerance in natural stone, compared to ±2-3mm with conventional 3-axis bridge saws. This precision is critical for architectural elements like spiral staircases, curved columns, and bookmatched panels where seams must be virtually invisible. For critical joints, ±0.2mm is achievable with surface verification and optimized tool paths.
Q: How does 5-axis CNC differ from 3-axis stone cutting?
5-axis CNC adds two rotational axes (A and C) to the standard X, Y, Z linear axes, allowing the cutting tool to approach the stone from virtually any angle. Because the tool can tilt and rotate while cutting, complex geometries like twisted columns, undercut profiles, and 3D carved surfaces can be machined in a single setup—eliminating the repositioning errors that occur with 3-axis machines.
Q: Is 5-axis CNC stone processing more expensive?
Per-piece, 5-axis CNC processing costs 15-25% more than conventional cutting. However, because it eliminates multiple setup steps, reduces material waste by up to 17.6%, and produces fewer rejects, the total project cost is often 10-15% lower—especially for complex geometries requiring 3+ conventional setups.
Q: What architectural elements require 5-axis CNC precision?
Spiral staircase treads, twisted columns, curved wall cladding panels, undercut cornices, 3D carved medallions, and bookmatched feature walls all require 5-axis CNC precision. Any stone element with a curved surface, undercut profile, or compound angle that cannot be achieved by straight-line cutting benefits from 5-axis technology.
Q: How do I specify 5-axis CNC requirements for my project?
Provide 3D CAD files (STEP or IGES format preferred), specify tolerance requirements (±0.5mm is standard; ±0.2mm achievable for critical joints), indicate surface finish requirements (polished, honed, or flamed), and include material specifications. A reputable 5-axis CNC fabricator will return a feasibility report within 48 hours.
Need 5-Axis CNC Precision for Your Next Project? Submit your STEP/IGES files for a free CNC feasibility report. Our team of 120+ specialists and 2 Italian 5-axis centers are ready to deliver ±0.5mm precision on your most complex stone elements. Request Your Free Feasibility Report
