TL;DR — Key Takeaways
- Pattern tracking means every slab is photographed at high resolution and stored as a digital twin, so vein flow across your finished wall is designed in CAD before cutting—not improvised on site.
- The workflow has four stages: slab scanning, vein-map vectorization, CAD layout with mirror logic, and a numbered installation map that travels with the crates.
- Bookmatch creates mirror symmetry around a center joint, while vein match (slip match) keeps veins flowing in one direction—choose by focal point versus continuity.
- Cutting tolerance is the hidden variable: at ±0.5 mm panel accuracy and joints held under 2 mm, a matched pattern survives installation; at ±2 mm, it visibly drifts.
- On an 84-panel hotel lobby project in Doha, digital layout approval took 1 day instead of a 2–3 day physical mockup, and the site reported zero vein-continuity rejections.
Pattern tracking is how randomly veined marble becomes a wall that looks like a single continuous artwork: every slab is scanned into a digital twin, the veins are laid out in CAD software with mirror and rotation logic, and the client approves the finished pattern on screen before a single panel is cut. Nature delivers stone slabs the way weather delivers clouds—no two alike, no two adjacent. But the most expensive walls in hospitality design, the bookmatched lobby feature walls and continuous-vein reception desks that photograph so beautifully, demand exactly the opposite: veins that flow across seams as if the stone had been poured in place.
I have sold stone for 12 years, and I can tell you the moment a project is won or lost in a presentation is rarely the material itself. It is the wall. When a designer sees the vein rising off one slab and continuing—perfectly mirrored—into the next, the decision makes itself. Because a digital layout lets everyone agree on the pattern before fabrication, the arguments that used to happen on site, at 300 dollars an hour in installer time, simply stop happening. In this article I will walk you through how our factory actually does it: the scanning, the software, the tolerances nobody quotes you, and the real numbers from an 84-panel lobby we shipped to Doha.
What Pattern Tracking Actually Means in Stone Manufacturing
Pattern tracking (sometimes called texture tracking or vein mapping) is the practice of linking every physical slab to a true-color digital image, then using that image as the raw material for layout decisions. A digital twin is a high-resolution photograph of a specific slab, geometrically calibrated so that any panel you draw on it corresponds to the exact physical area that will be cut. It is not a catalog photo of a similar slab—it is this slab, with its grey-gold vein 240 mm from the left edge.
The reason this matters commercially is simple. Because natural veining cannot be reordered or restocked, every pattern decision made late is a decision made with money: wasted panels, remade pieces, and dry-lay arguments that stretch schedules. When the pattern is resolved digitally, those costs migrate upstream to a screen, where moving a panel costs nothing. According to Stone World's coverage of digital layout and artistic nesting software, this preview-before-cutting capability is precisely why processors adopting it report higher customer satisfaction: designers and their clients can "sample" how the stone will look in their design before fabrication begins.
The phrase I use with architects: "You are not buying slabs; you are buying one approved image, and we manufacture it." Once the client signs the digital layout, fabrication is just execution. The signature is the product.
The Digital Workflow: From Scanner Bed to Numbered Installation Map
Here is how a matched wall actually moves through our factory, step by step. The four-stage workflow—scan, vectorize, lay out, number—is what converts forty tons of raw slabs into one coherent pattern.
Step 1: Slab scanning builds the digital twin

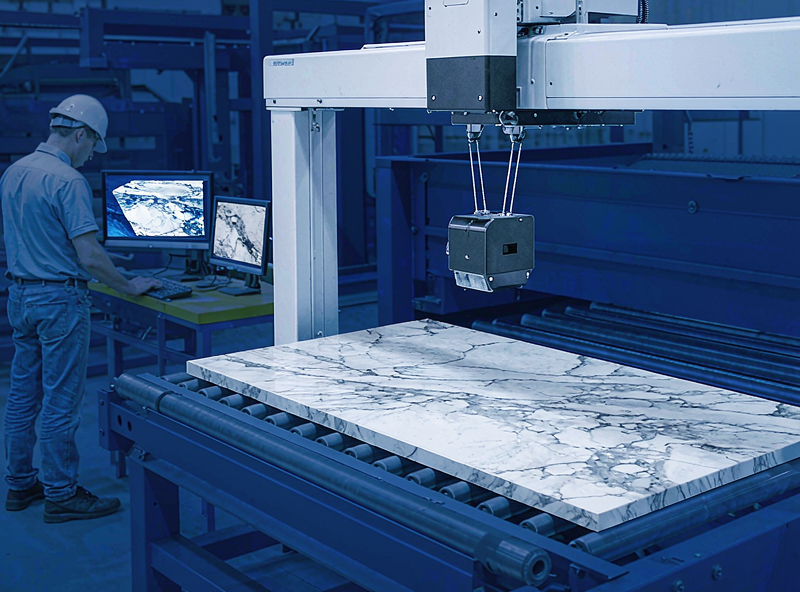

Every slab arriving for a matched project passes under an overhead scanner on the roller conveyor, captured in true color at roughly 0.5 mm per pixel. The scan is tagged with the slab's block number, bundle sequence, and dimensions, then stored in our inventory system—the same digital-first logic, incidentally, that feeds our AI visual inspection line. Because the twin is geometrically calibrated, not just photographed, dimensions measured on screen match dimensions measured with a tape to within ±0.5 mm.
Scanning turns a slab into data. Everything after this step happens in software first.
Step 2: Vein-map vectorization gives the software something to reason about
A photograph alone is not enough for layout software; the system converts the image into a vein map—vectorized line work describing the dominant vein directions and movement on each slab. This is the quiet technical core of pattern tracking. The vectorized vein map is what allows the CAD engine to propose rotations and mirrors that align vein angles across seams, rather than leaving a human to eyeball forty panels. Where the software is uncertain—a wide cloud movement, for example—our layout engineers adjudicate on screen, the same human-plus-machine division we use in quality inspection.
Step 3: CAD layout applies mirror logic and nests every panel

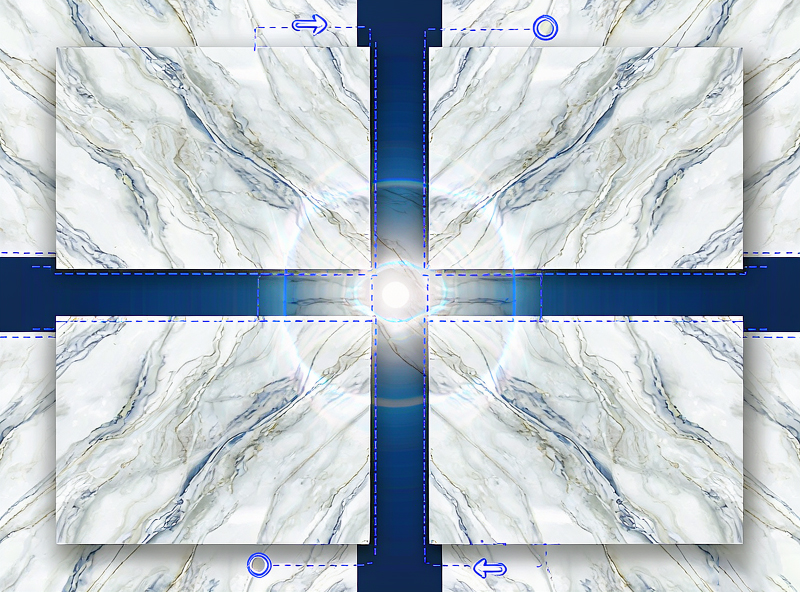

This is where the design intent gets encoded. For a bookmatch, the software opens consecutive slabs like pages of a book; for a four-way match, it mirrors both vertically and horizontally around a center cross; for vein match, it keeps orientation consistent so veins run continuously. The Natural Stone Institute's technical article on bookmatching explains the underlying geology: two neighboring slabs polished on the surfaces that faced each other in the block carry virtually identical, mirrored patterns—which is why consecutive bundle numbering is non-negotiable. The layout step also optimizes yield, and this is the honest tradeoff: matching logic constrains cutting positions, so a bookmatched wall typically consumes 15–25% more raw material than a random layout of the same area (per our 2025 production records). I would rather tell you that now than after you sign a contract.
Step 4: Approval, cutting, and the numbered installation map
The client approves the layout on screen—often a 15-minute video call with the drawing shared live. After cutting, every panel gets an etched number keyed to its position on the layout, and the installation map ships with the crates. Because each panel's position and orientation are pre-decided and documented, the installer is following a map, not interpreting a mood board. The data exchange files that carry these drawings between design CAD and factory CAM systems are exactly the machine-readable product formats standardized in the ISO 10303 (STEP) family for product data representation and exchange—the same interoperability backbone used across manufacturing industries.
Our 8,600 m² layout area exists for this final step: the full wall is assembled dry on the factory floor, photographed from three angles, and the photos travel to site inside the crate. The client sees their actual wall—not a sample—before it leaves China.
Bookmatch vs Vein Match vs Slip Match: Which Layout Fits Your Project?
These three terms get used loosely in showrooms, and the confusion costs money. The choice is between a focal point (bookmatch) and a flow (vein match/slip match)—and the wrong choice for your space is expensive to undo. Here is the comparison table I walk clients through:
| Dimension | Bookmatch (mirror match) | Vein match (continuous match) | Slip match (sequential) |
|---|---|---|---|
| Pattern logic | Consecutive slabs mirrored around a center joint | Veins aligned to flow across seams, no mirroring | Slabs in original sequence, same orientation |
| Visual effect | Symmetrical "butterfly" focal point | Uninterrupted directional flow | Natural, gradual drift of pattern |
| Best applications | Lobby feature walls, fireplace surrounds, reception backdrops | Waterfall counters, corridor flooring, L-shaped tops | Large floors, elevator lobbies, budget-conscious walls |
| Material overhead (our 2025 records) | +15–25% vs random layout | +8–12% | Baseline |
| Key requirement | Consecutive slabs from same block | High vein contrast; careful corner planning | Color batching only |
| Weakness to plan around | Loses impact when interrupted by corners/cutouts | Demands precision at every direction change | No drama—reads as "material," not "art" |
Table 1: The three matched-layout families and where each earns its premium. Last verified: 2026-09-15.
Which One Should You Choose?
Choose bookmatch when: the wall is a single uninterrupted expanse with a natural viewing axis; the material has bold directional veining; and the wall is the reason the room photographs well.
Choose vein match when: the surface turns corners (waterfall counters, L-shaped tops); you want calm continuity rather than a centerpiece; and budget is tighter but visible seams must still disappear.
Choose slip match when: coverage area is large and repetitive (floors, elevator lobbies); veining contrast is moderate; and you want the lowest material overhead with acceptable visual continuity. And be honest about where matched layouts don't belong: a bookmatch crammed into a surface full of corners, cutouts, and fixtures loses the effect while keeping the cost.
Why Tolerances Decide Whether the Pattern Actually Lines Up
Here is the part most marketing pages skip. A perfect digital layout still fails if the physical panels drift. Vein-matching succeeds or fails on the factory floor at cutting tolerances of ±0.5–1.0 mm, because a 2 mm angular drift across a 1,800 mm panel is visible at three meters. I learned this the expensive way in 2019, on a project where a subcontracted cutting shop held ±2 mm—and the "perfect" bookmatch showed a stair-stepped vein that the client photographed at handover. We re-cut nine panels at our own cost. That failure is why matched projects in our factory are cut only on CNC centers holding the tighter limits.
| Parameter | Standard for matched layouts | Why it matters |
|---|---|---|
| Panel cutting accuracy | ±0.5 mm (CNC centers) | Keeps vein endpoints aligned across each joint |
| Joint width on assembly | ≤ 2 mm | Wider joints break the mirror illusion |
| Surface flatness | ≤ 1 mm over 2,000 mm | Lighting grazes show flatness errors on polished walls |
| Scan resolution | ~0.5 mm/pixel, true color | Vein map precision defines layout precision |
| Panel numbering | Etched ID keyed to installation map | Prevents orientation errors during site installation |
Table 2: Tolerance stack for matched stone layouts. Last verified: 2026-09-15.
Interactive: Vein-Matching Layout Visualizer
Click a layout mode to see how the same four panels re-orient in software. The vein pattern on every panel is identical—the transforms do the matching, exactly as the CAD engine does.
Demonstration only — real layout software works from scanned vein maps of your actual slabs.
Case Study: 84 Bookmatched Panels for a Doha Hotel Lobby
In 2025 we delivered the feature walls for a hotel lobby in Doha: 84 bookmatched panels covering 2,340 m² of white marble with bold grey-gold veining, across four elevations, the tallest at 6.0 m. The client's designer initially wanted physical mockups for approval. Because the digital twins were scanned at 0.5 mm per pixel and the layout was approved on screen in one day, we skipped the 2–3 day physical mockup cycle entirely and started cutting four days earlier than the contract schedule.
| Metric | Result | Note |
|---|---|---|
| Panels delivered / wall area | 84 panels / 2,340 m² | Four elevations, four-way bookmatch at center axis |
| Layout approval time | 1 day (digital) vs 2–3 days (mockup baseline) | Screen approval with live drawing session |
| Dry-lay continuity findings | 3 minor vein offsets of 1.5–2.0 mm | Corrected in layout, re-verified before packing |
| Cutting accuracy achieved | ±0.5 mm on 100% of panels | CNC centers only; bridge saws excluded from matched scope |
| Site vein-continuity rejections | 0 of 84 panels | Confirmed by contractor at installation, Nov 2025 |
| Material overhead vs random layout | +19% | Within the 15–25% bookmatch band (Table 1) |
Table 3: Doha lobby project production record. Source: internal MES records, 2025. Last verified: 2026-09-15.
The three minor offsets caught during dry-lay are the part I want you to notice. Dry-lay inspection is not a formality; it is the last point where a 1.5 mm vein offset costs nothing to fix, so any supplier who skips it is transferring that risk to your site. This is also why I tell clients to treat a supplier's dry-lay photo archive as a due-diligence document: request it, count the panels, check the timestamps.
How to Specify Pattern Matching So the Factory Can't Get It Wrong
If you are the specifier or procurement lead, put these five items in writing when you request quotations. Ambiguity in pattern specification is the single most common cause of vein-matching disputes, because "matched" means five different things in five different factories.
- Name the layout mode explicitly — bookmatch, vein match, or slip match — and reference the comparison table above rather than trusting verbal descriptions.
- Require digital layout approval before cutting begins, with a defined approval window (we use 3 working days) so the schedule stays protected.
- State the cutting tolerance — ±0.5 mm for CNC cutting is a reasonable spec for matched walls — and ask which machines will actually cut your panels.
- Make factory dry-lay inspection mandatory, with timestamped photos of the full assembled wall from at least two angles, before packing.
- Demand the numbered installation map ship inside crate #1, because a map arriving after the panels start going up is a map nobody follows.
One more honesty note, because trust is cheaper than litigation: matched stone is not the right answer for every budget. Because bookmatching reserves pairs of consecutive slabs and constrains cutting positions, a small bookmatched feature can cost more in material overhead than the wall behind it—so match the elements people will photograph, and let the back corridors slip-match. I have saved clients five-figure sums with that single sentence.
Frequently Asked Questions
What is pattern tracking in stone manufacturing?
Pattern tracking is the practice of photographing every slab at high resolution, storing each image as a digital twin linked to the slab's ID, and using that image inside CAD layout software to plan how veins and movement will run across the finished installation before any cut is made. At Ruifengyuan, every slab entering the 8,600 m² layout area carries a scanned digital twin, so the pattern you approve on screen is the pattern that gets cut.
What is the difference between bookmatch and vein match?
Does bookmatching cost more than a standard layout?
Can any natural stone be bookmatched?
How do I verify a supplier can actually deliver vein-matched panels?
How much extra lead time does pattern matching add?
